Total hours: 6.25 hr

June 18th: Worked on Design

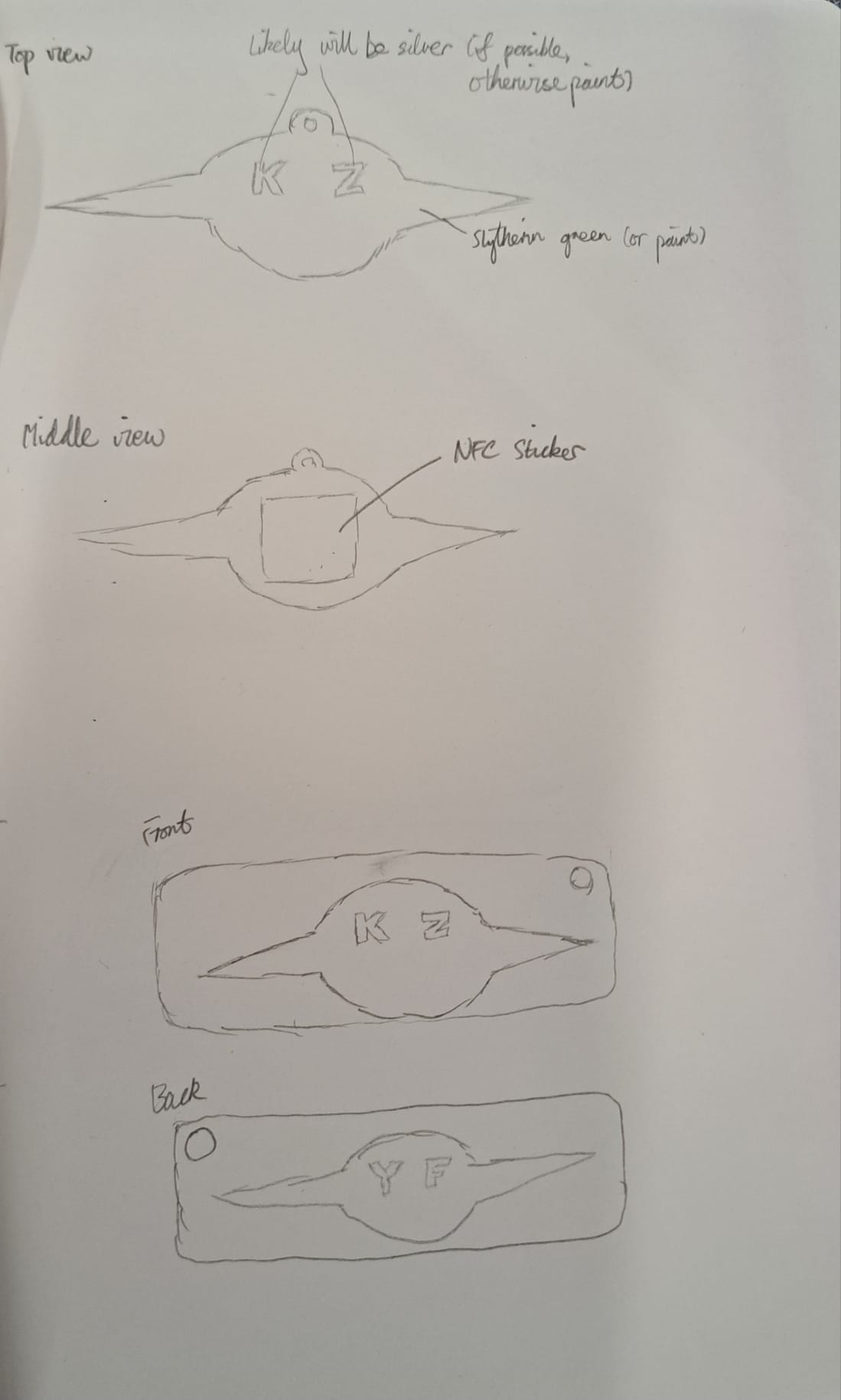

• Came up with two variations of the design:
• Decided to go with the one where it's shaped like Yoda
  • The ears may potentially come off (hopefully not) but it looks better than the one where the Yoda is enclosed in a box
• Settled on Slytherin green for the shape, silver for the words (if there is no silver filament, then I will paint)
• Found usable Yoda icon to be imported into Onshape
• Used paint to color everything black so it would just be an outline in CAD

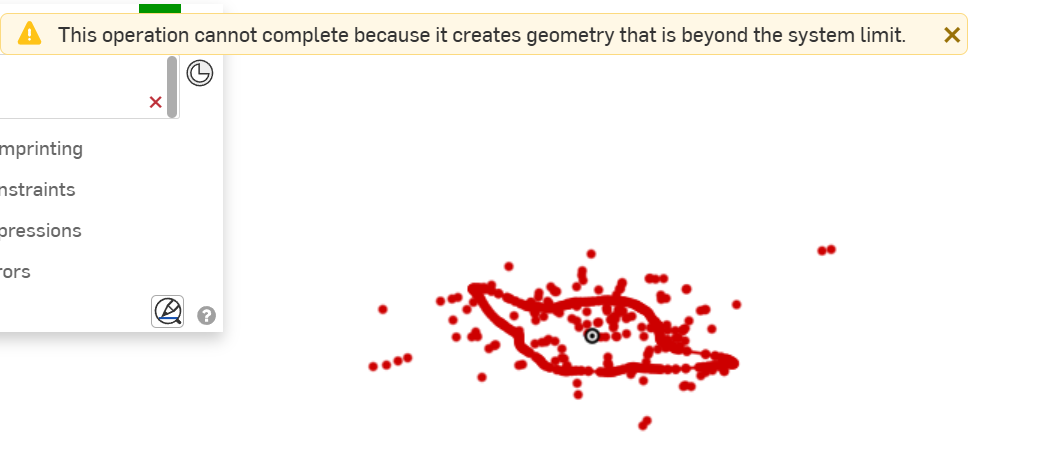

• Converted into DXF but keep getting this error - took a while to solve it
• Succeeded using another DXF converter

Total time spent: 1h

June 19th: Worked on CAD

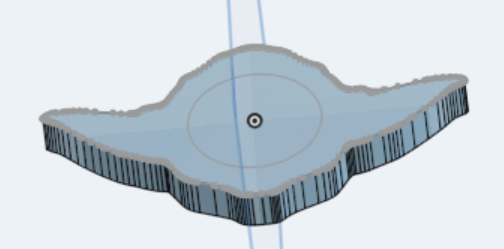

• Created the general shape of the CAD, including the cavity

Total time spent: 1h

June 20th: Worked on Letters

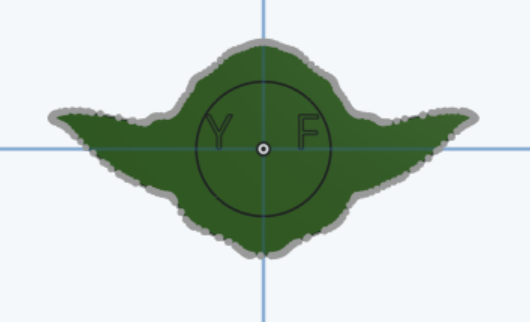

• Added letters on front and back

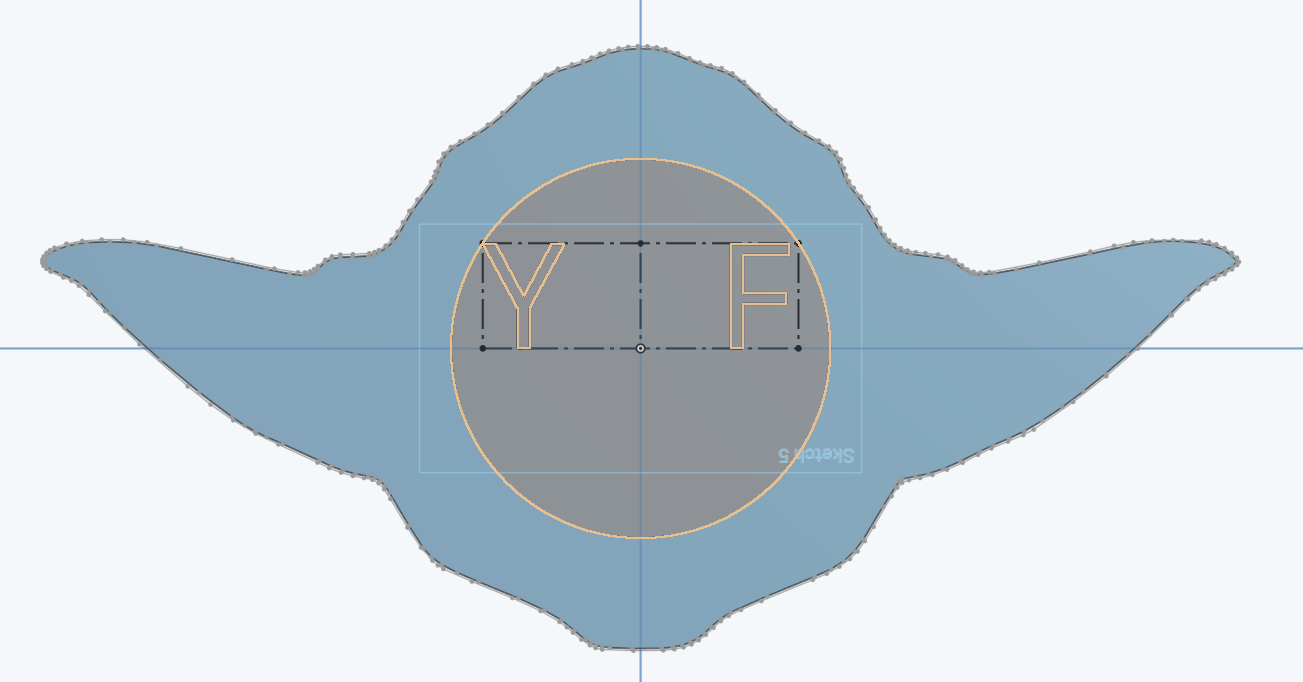

• Letters on the back keep looking misaligned - looking for ways to fix
• Realized it's probably aligned on the center of each letter, which is better than if I adjust it
• Issue - circle on the back due to cavity
  • Tried extruding the entire thing but didn't quite work
  • In the end, it worked by using add in the extrude instead of new

Total time spent: 2h

June 21st: Worked on Keychain Hole

• Researched different Onshape methods to do a keychain hole
  • Sweep, Revolve, Loft, etc
• Realized doing an extrude made the most sense - got that done

Total time spent: 0.5hr

June 26th: Found parts on EasyEDA

• Added all the parts to my schematic on Easy EDA

Total time spent: 0.25hr

June 28th: Finished PCB

• Finished schematic
• Got an appropriate Yoda dxf, sized and exported from Onshape
• Formatted and routed PCB
• Tried out different designs and finishes
• Checked price on PCBWay and JLCPCB - with PCBA, it becomes >50 dollars so I cannot afford it with the easy project tier money

Total time spent: 1.5hr
