Rp Nano
Created by
@thetridentguy
title: rp-nano
author: TheTridentGuy
description: Minimal RP2040 board, designed for USB HID applications.
Total time: 8h
July 2:
8h

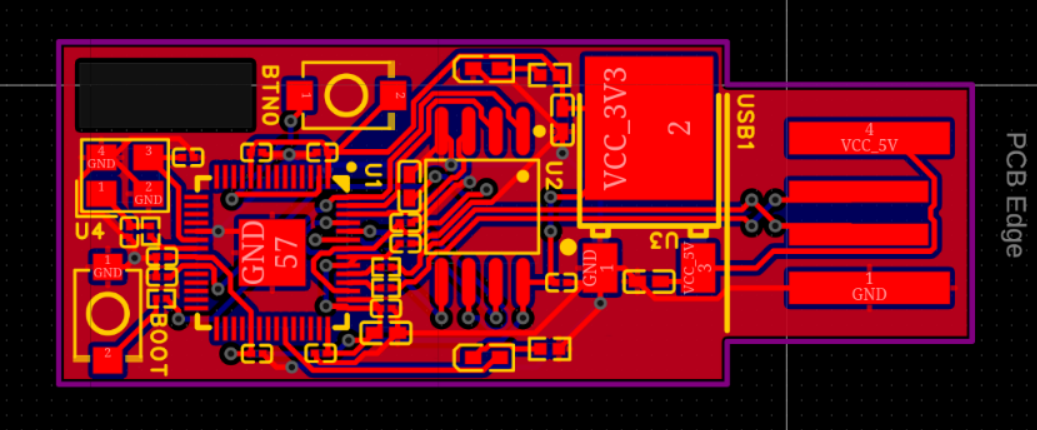

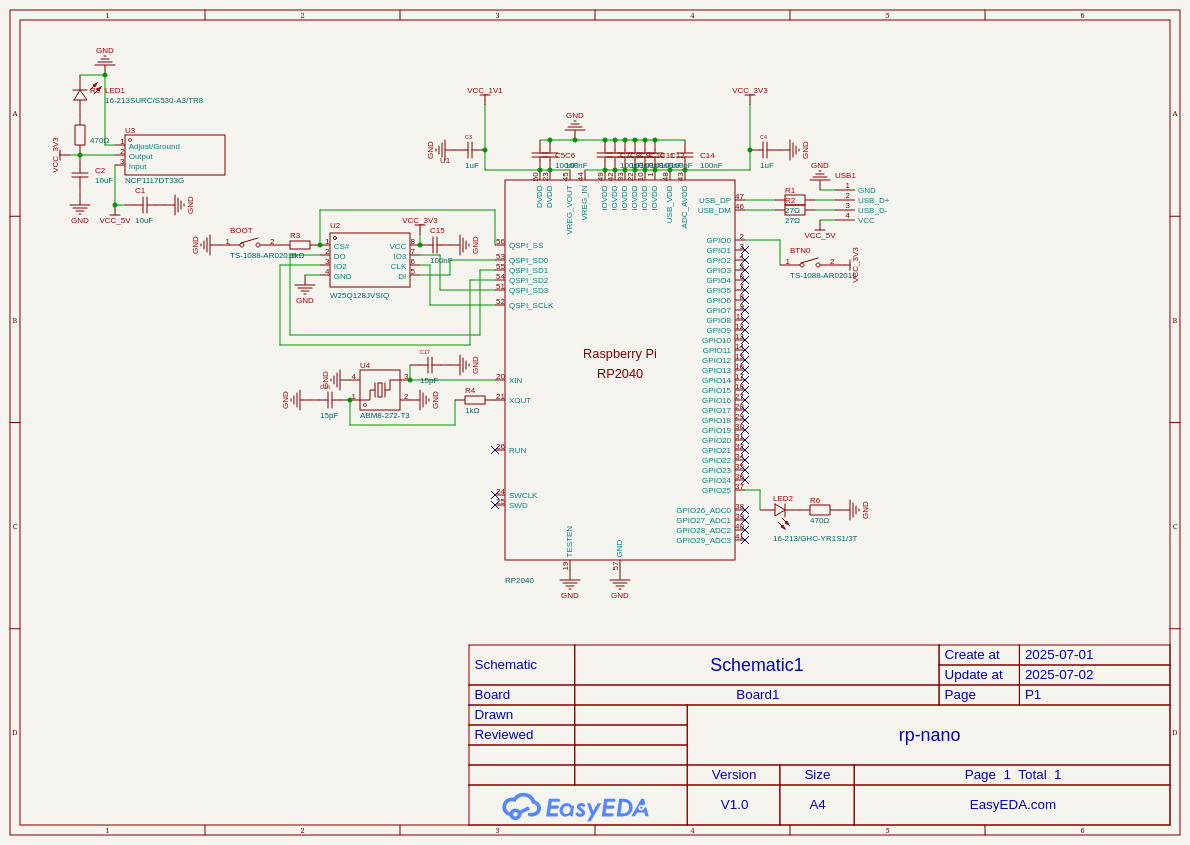

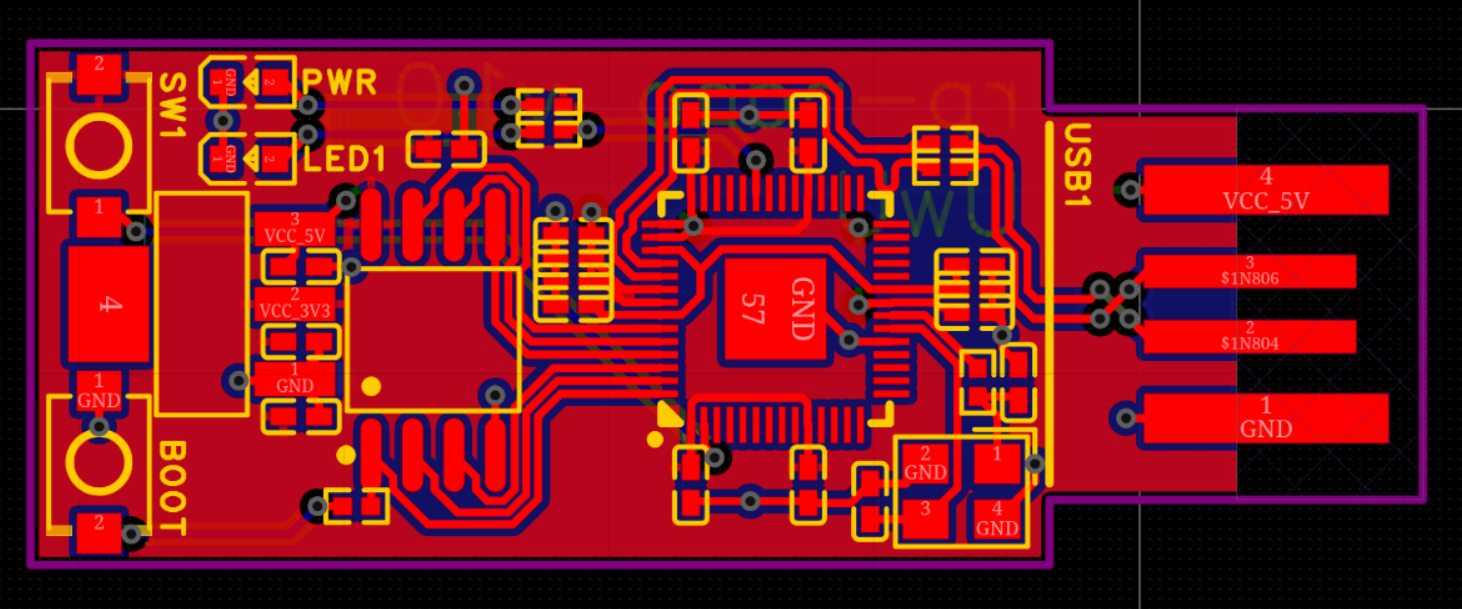

I got really carried today and spent basically the entire day working on this, and I've completed the entire schematic, and most of the PCB. I chose
to do the PCB routing by hand, which took more time, but allowed me to keep in mind which connections needed to be optimized.
