Lucas11 Dev Board
Created by
[Lucas11]
• Started on May 23, 2025
An fast Dev Board for prototyping and just making projects without soldering every time.
My Dev Board
Hour 20:58
Im going to start the board. Ok so im going to start adding the pins for the Pico.
Day one finished (i got lazy)
Day Two
Hour 10:05
Ok im going to use the XIAO RP2350 and a screen.
Hour 10:26
Added the screen! going to add the switches.
Hour 11:52

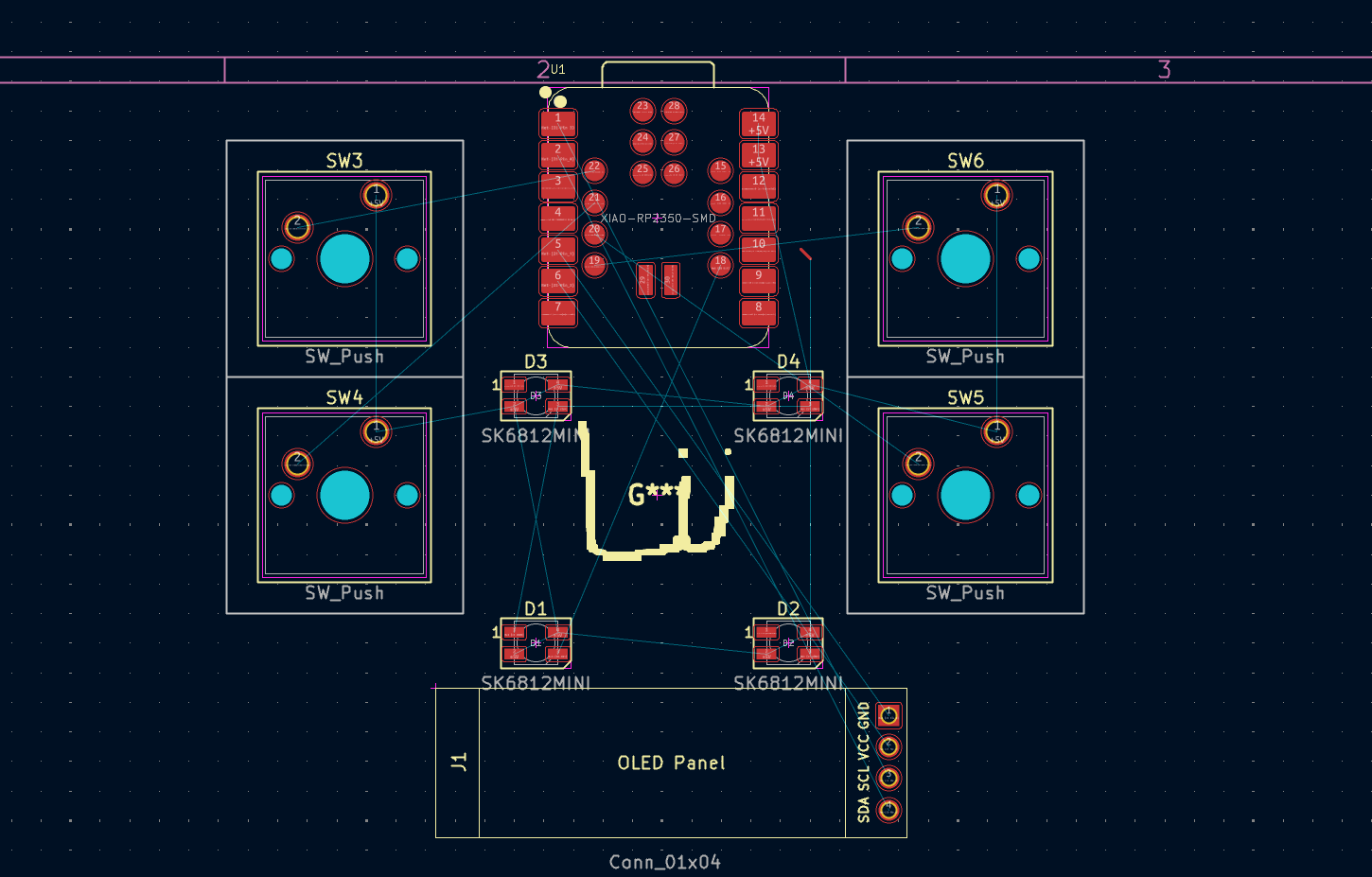

Ok i added the Switches and screen.
Hour 12:11

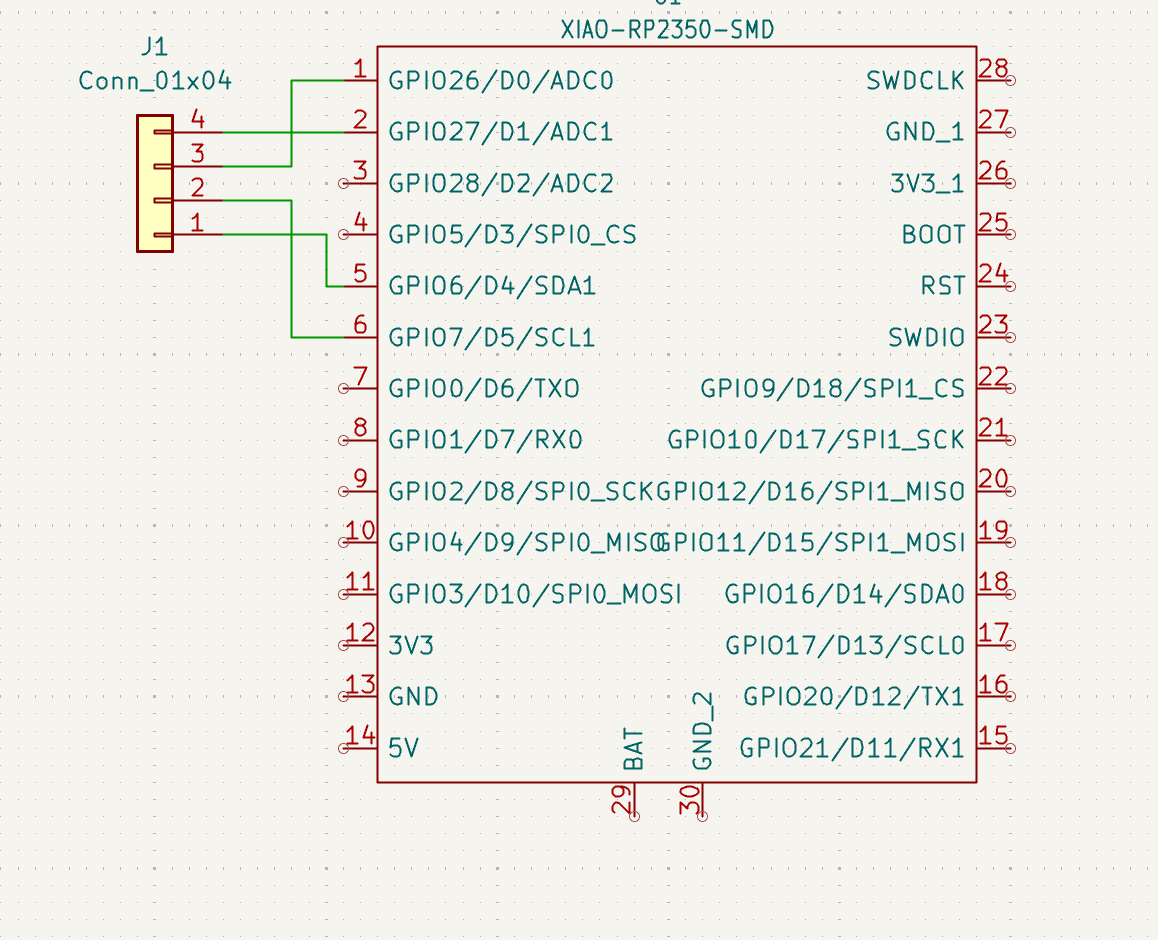

I finished the pcb part! Now i need to do the wireing.
Hour 13:41

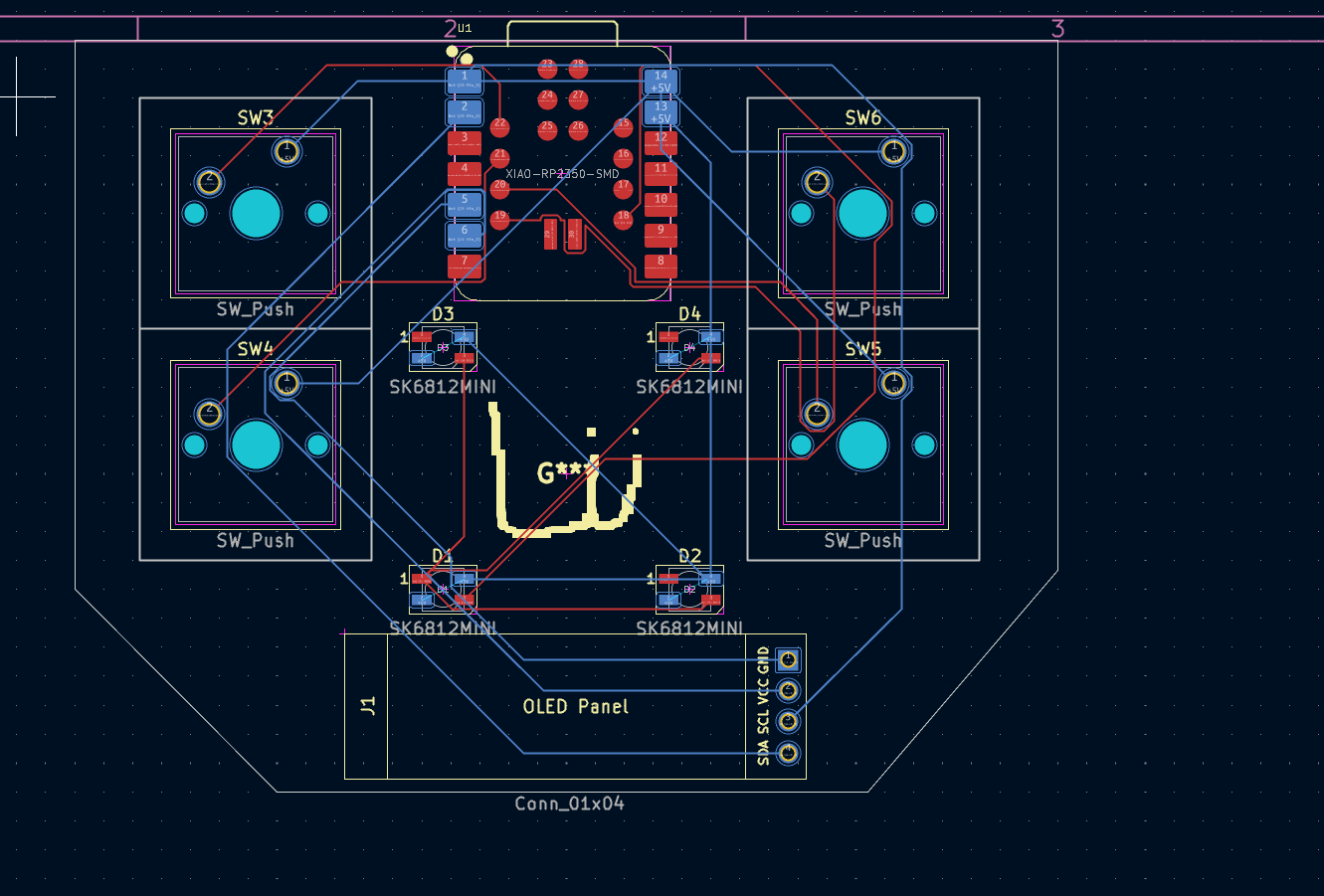

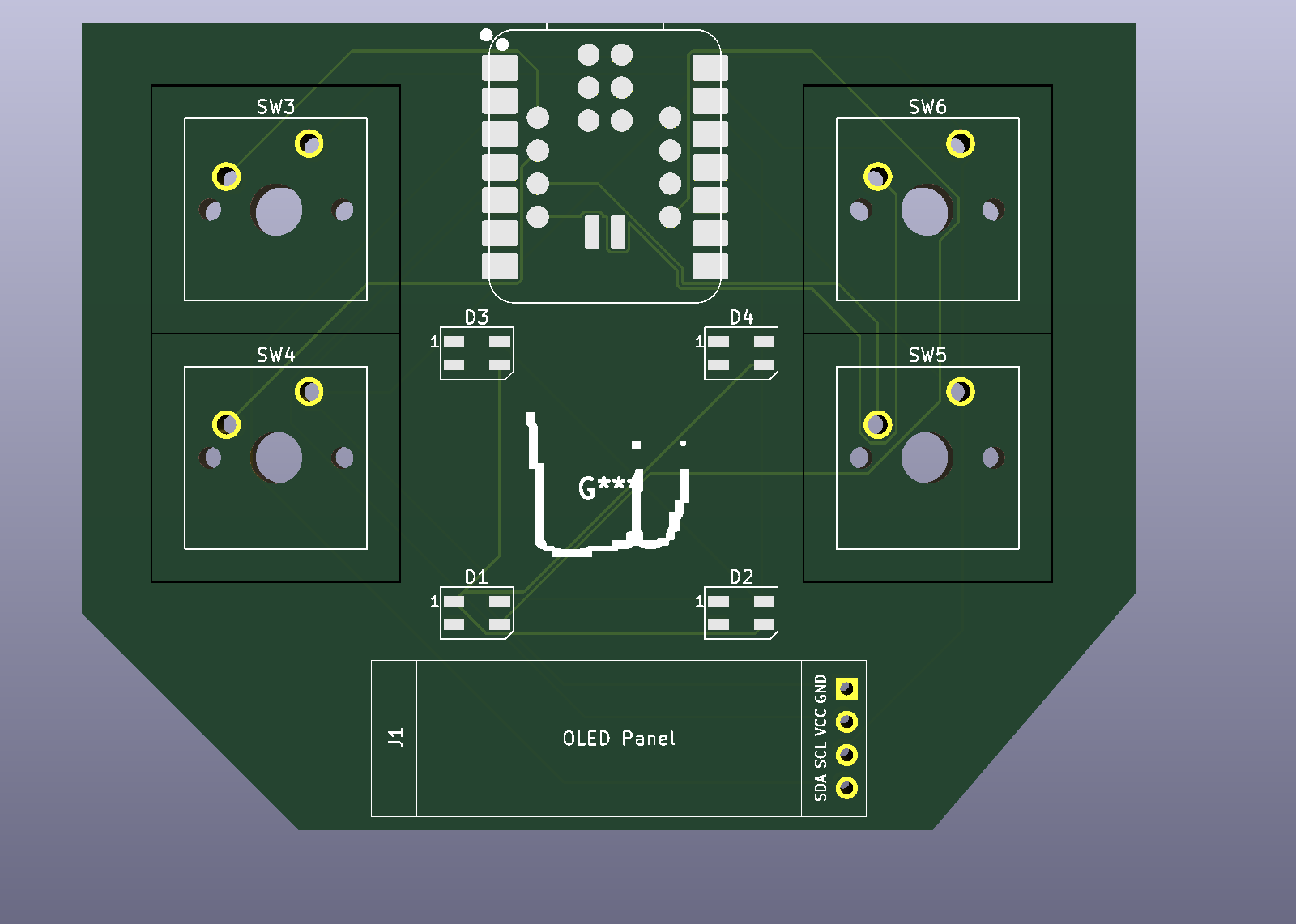

Finished all the PCB!!!!
In one day!!!
Hour 14:04
Fixed all the DRC errors.
