3dprinter

Created by @kermitsgonnakermicide

CoreXY DIY Printer Build Log

Total Time Spent So Far: ~37.5 hours

Day 1 – Research (June 14th)

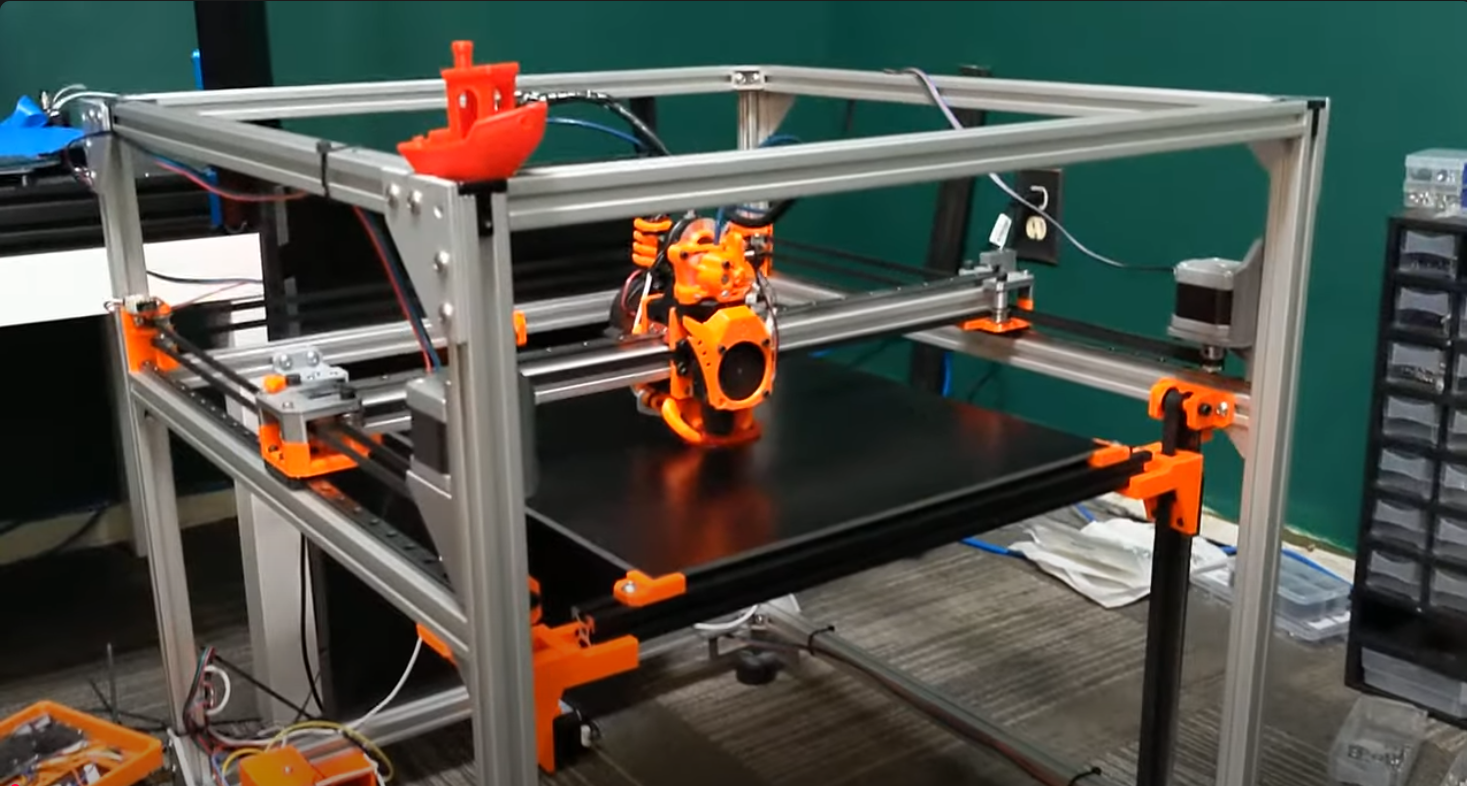

After evaluating various printer designs, I decided to build a CoreXY printer because of its high speed, accuracy, and reliability compared to traditional bedslinger designs.
An enclosed build was important to me as I want to print higher-temperature filaments like PETG, ABS, or Nylon with consistent results.

Key design considerations:

  • Considering a rail-driven system instead of fully belt-driven for added rigidity (still undecided).
  • Budget allocation for a BLTouch auto-bed-leveling sensor.
  • Proper printer enclosure for material versatility and print quality.

Time Spent: 3h

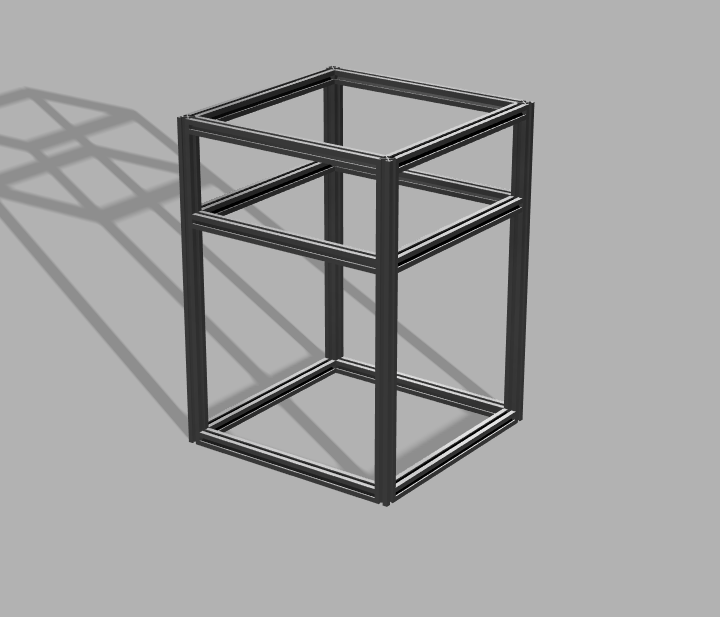

Day 2 – Frame Assembly (June 30th)

Started building the frame using 2020 aluminum extrusion, with a total cage size of 470 by 300 mm. This forms the main structural base for the printer. I also looked at some options for an enclosure so that I may be able to print in other filaments that do require an enclosure but I think thats just out of scope for now

alt text

Time Spent: 3h

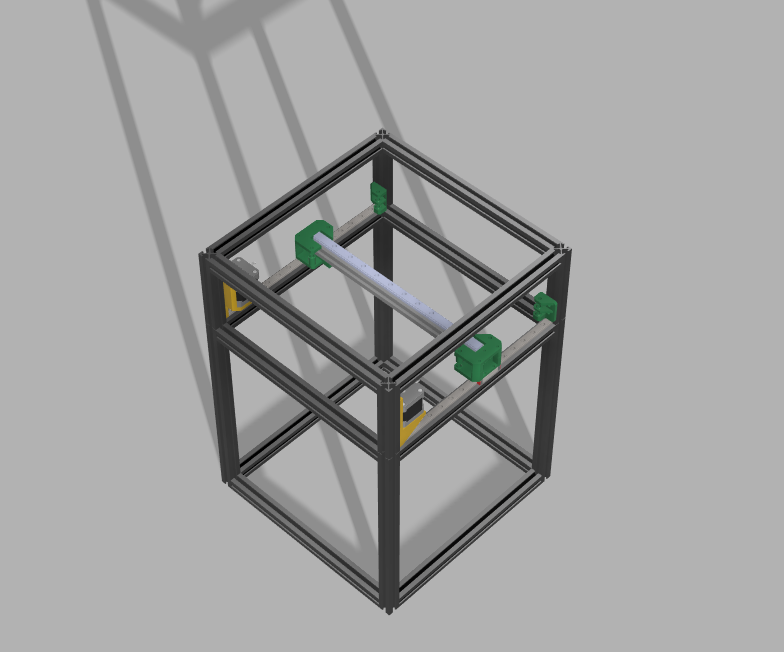

Day 3 – Gantry Build (June 5th)

Returned to the project after a short break and made major progress:

  • Added corner brackets to strengthen the frame.
  • Increased printer height by 30 mm for more build volume.
  • Completed most of the gantry assembly, using NEMA 17 motors, MGN12 linear rails, and a belt-driven motion system for now.

alt text

Time Spent: 10h

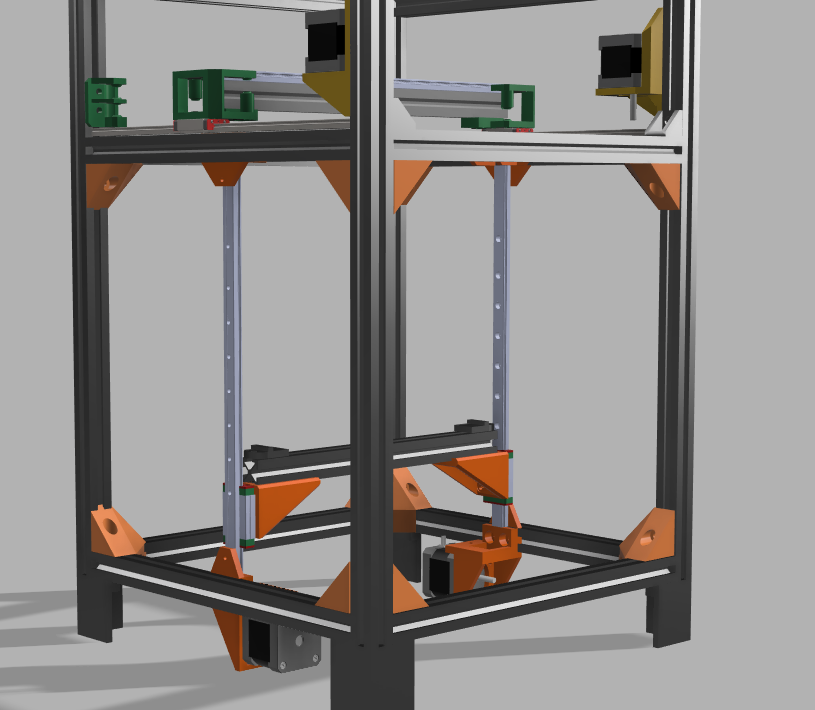

Day 4 – Z-Axis Assembly (June 10th)

Focused on the Z-axis assembly today and added some quality-of-life improvements like adjustable printer feet.

  • Used two stepper motors for Z-axis movement.
  • Planned to use a 220x220 mm heated bed (link).
  • Built on mgn-12 and mgn9linear rails with timing belt-driven carriages for smooth and stable vertical motion.

alt text
alt text

Time Spent: 12h

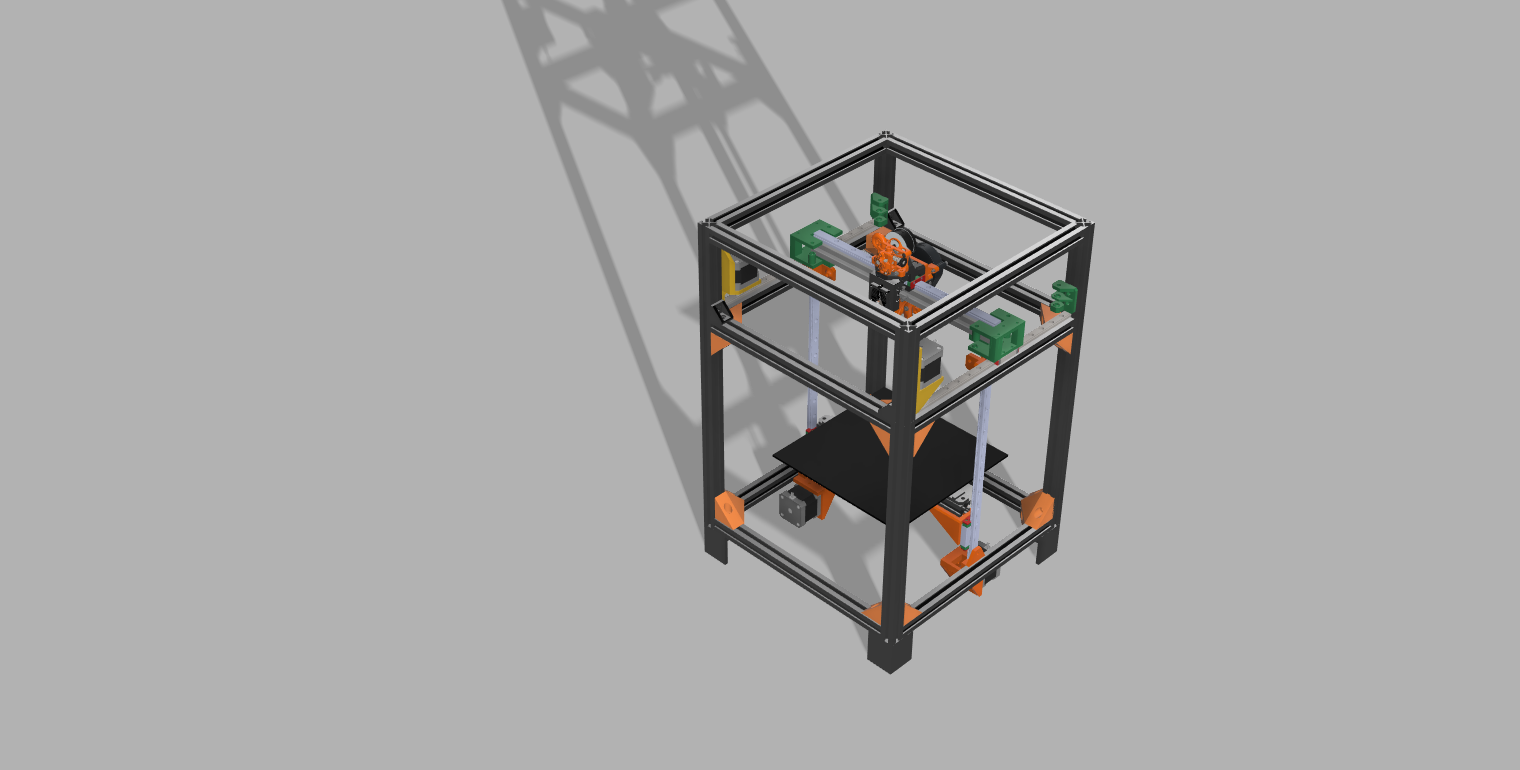

Day 5 – Hotend & Extruder Setup (July 25th)

Worked on the EVA 2.4-based hotend assembly: The EVA is a modular toolhead assembly, with an entire ecosystem of community made parts for all sorts of extruders and hotends and probes and fans. I would like to disclose that YES, I am using their base 3D model for my toolhead but i'm swapping out the components that i'm using for the default stuff and thus am changing some of the core parts to fit it

  • Planning to use a Bambu X1 hotend for easy availibility in india and cheap cost.
  • Extruder will be an LDO Orbiter for high precision and lightweight direct drive.

alt text

Time Spent: 7h

Day 6 and 7 - Requested fixes and updates to readme(Aug 6-7)

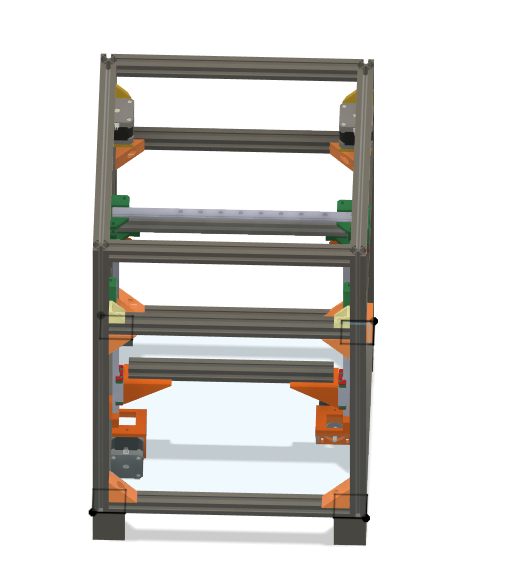

Changed the Z axis to have 3 steppers as per feedback(same assembly)
zaxis Additionally, added some brackets that were missing

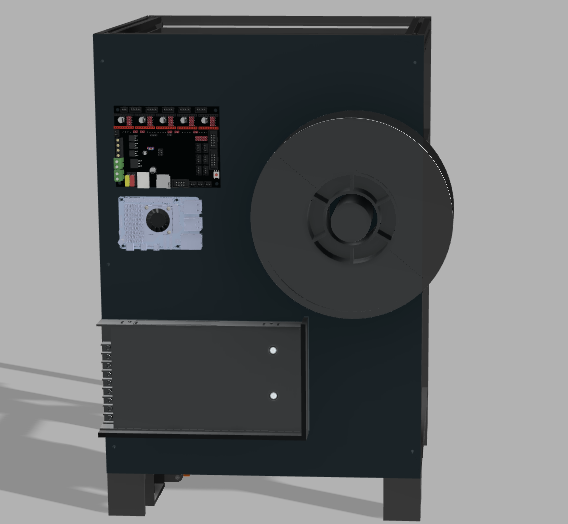

Added the back electronics stuff(PSU, raspi, BTT mobo)
Changed some suppliers around in the BOM and changed out the mobo and added some stuff I forgot(also removed the BLtouch, will get later) backthing And worked on updating the README and Journal!!
Time Spent: 3h

Day 8 - Forgor about wiring diagram

Spent around 30 mins on a wiring diagram with the new mobo
diagram

Time Spent: 0.5h
