time spent: 36 hours

july 28th

speedrunning a keyboard before the 31st, just because

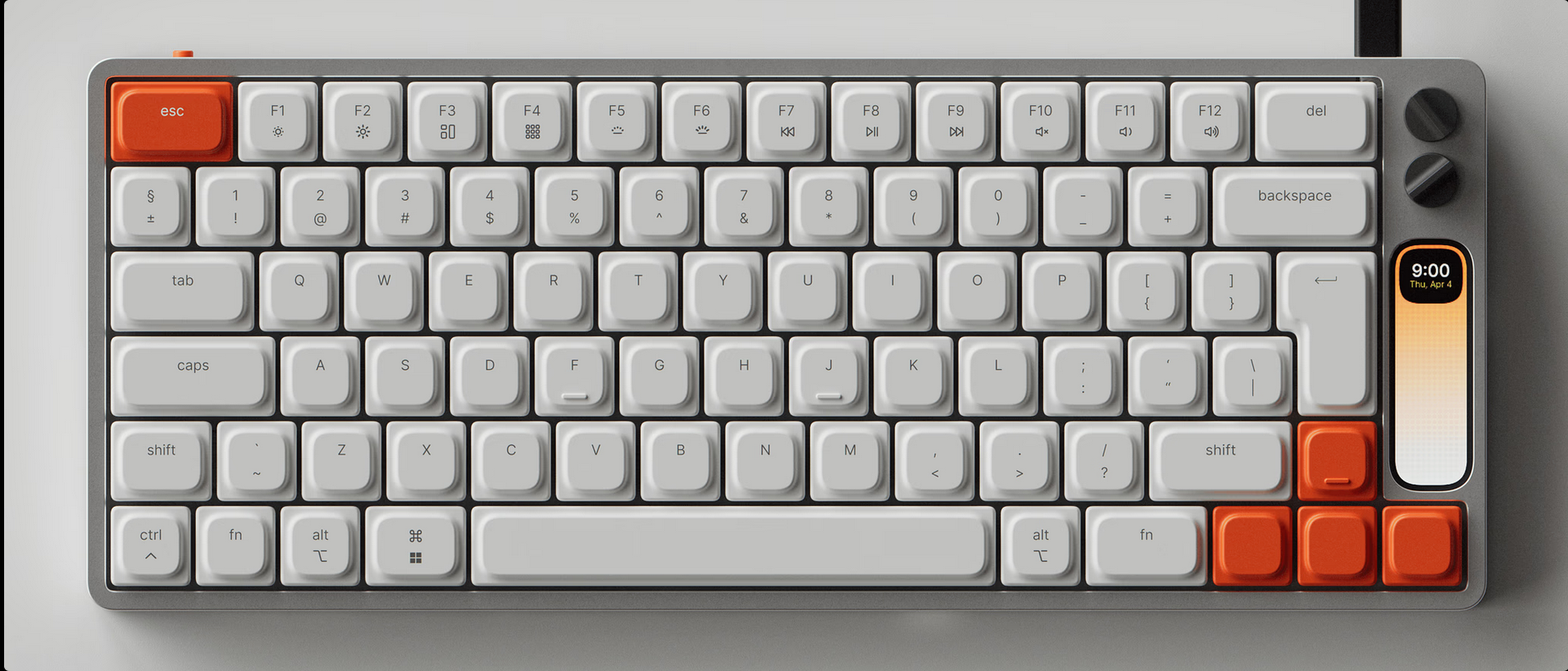

i was inspired for making this keyboard by the KNOB keyboard, which ive seen and always thought looked like the perfect keyboard. unfortunately, its $439, bad, so i'll try to make something similar for $150

KNOB: KNOB

planned features: - nice mechanical switches - keycaps, i wont be using low profile because i personally dont like it - hotswappable - 2 dials - oled screen - both usb c and bluetooth connectivity - usb c charging - 3000mAh battery for big battery life

ill be using the nice!nano v2 because it consumes very little power, has battery charging built in, and has bluetooth HID + usb c HID already

parts list:

Component	Part	Notes
Microcontroller	Nice!Nano V2	nRF52840 + integrated battery charger
Battery	3.7V Li-ion 3000mAh (flat, JST-PH)	Rechargeable
USB Port	JST to USB-C charging cable	Board already has onboard USB
Rotary Encoder	EC11 w/ push button	For volume/menu
Screen	ST7789 1.14"	SPI, vertical https://www.aliexpress.com/item/1005009445748262.html

Component	Part	Notes
Switches	78x Tactile MX Switches
Diodes	1N4148W SMD
Hotswap Sockets	78x Kailh MX sockets
Keycaps	SA / DSA / OEM profile	PC or PBT preferred
Encoder Knob	Aluminum / ABS cap

schematic

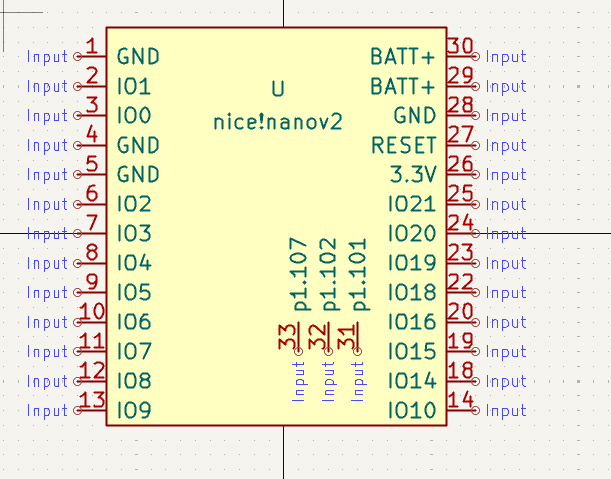

microcontroller symbol done!

+3 hours

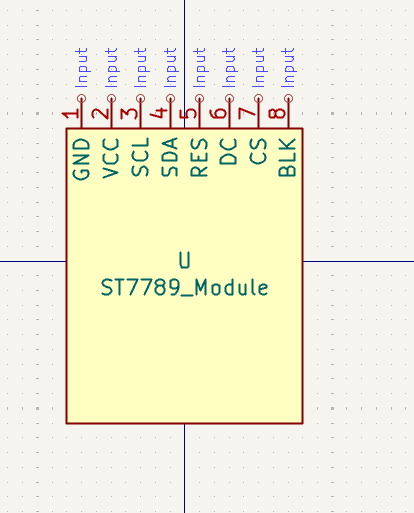

done with ST7789_Module symbol

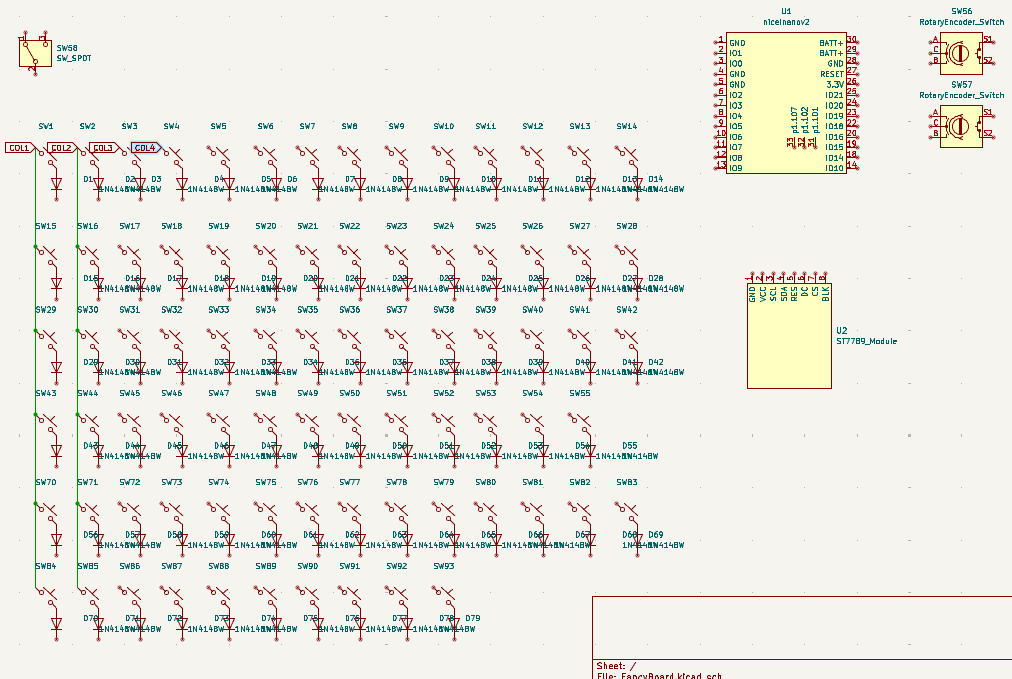

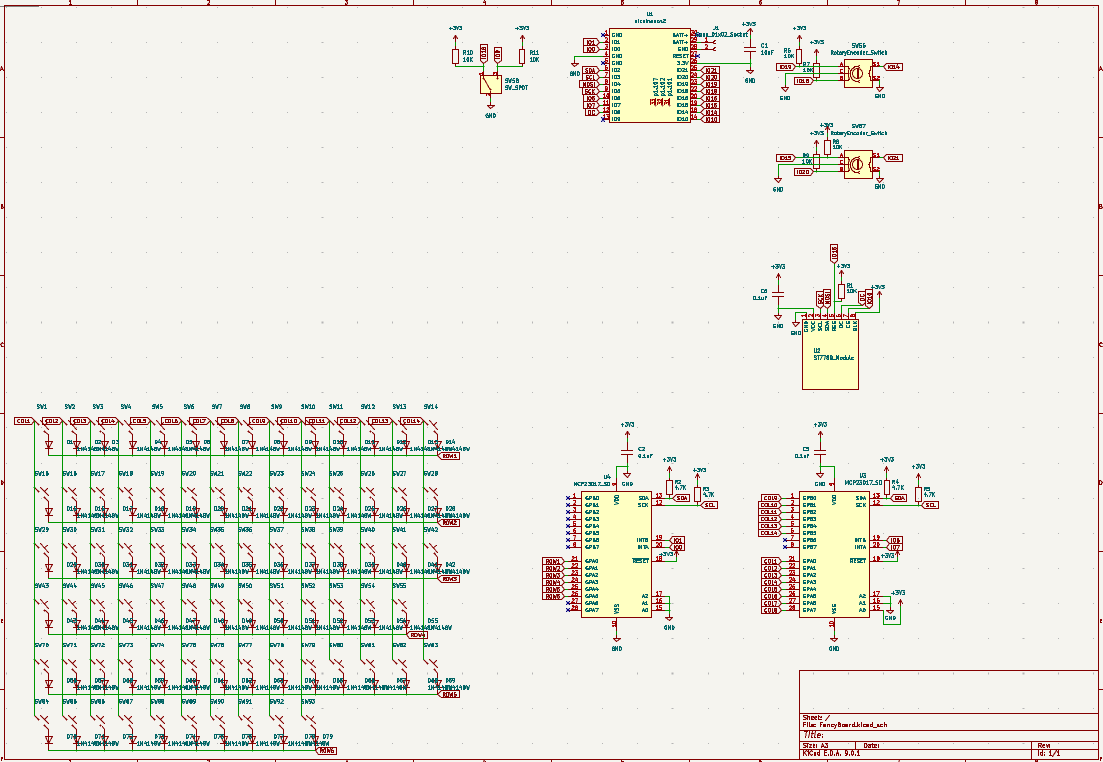

current progress of schematic

+2 hours

adding 2 MCP23017 because i need a lot more io

july 29th

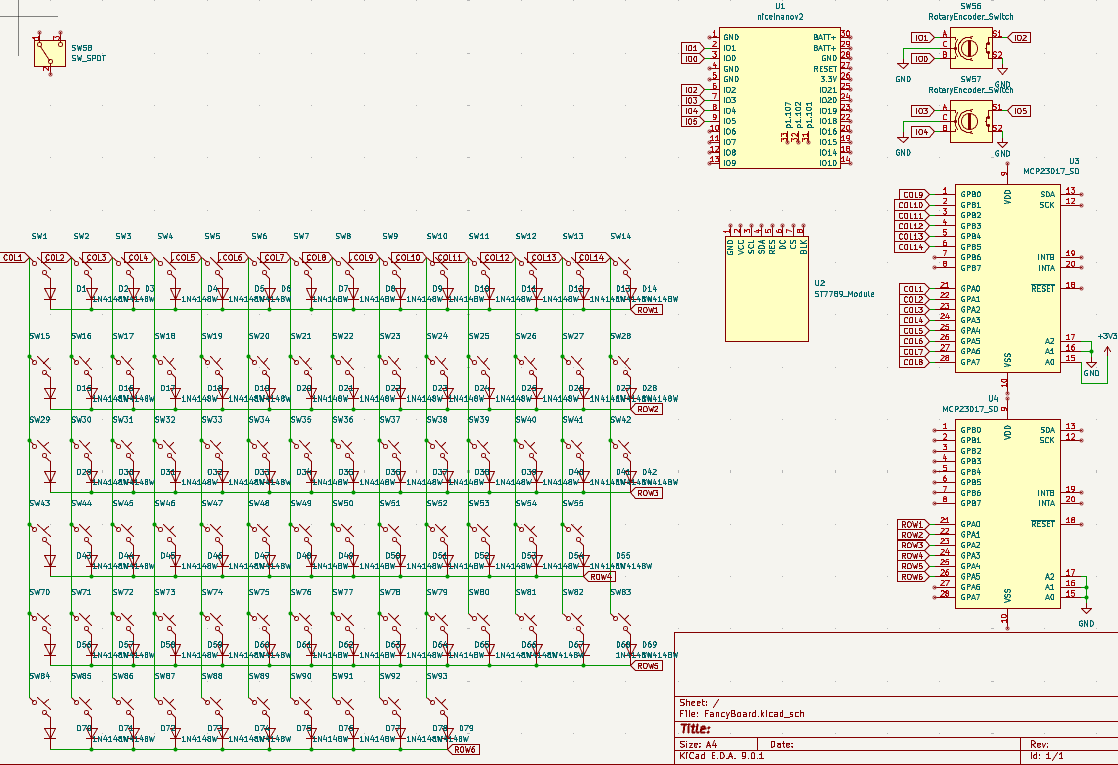

added all the components, need to complete wiring

finished most of everything, need to add some pull up resistors and capacitors and stuff

+3 hours

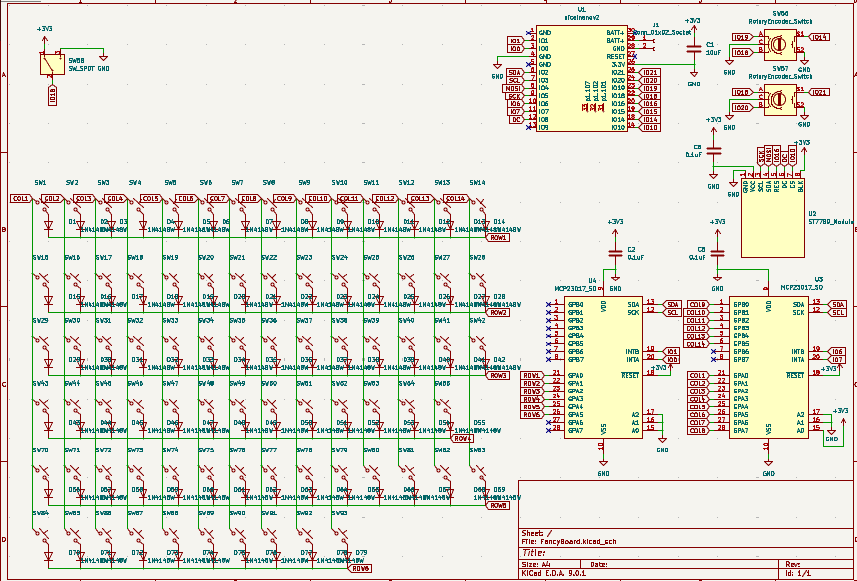

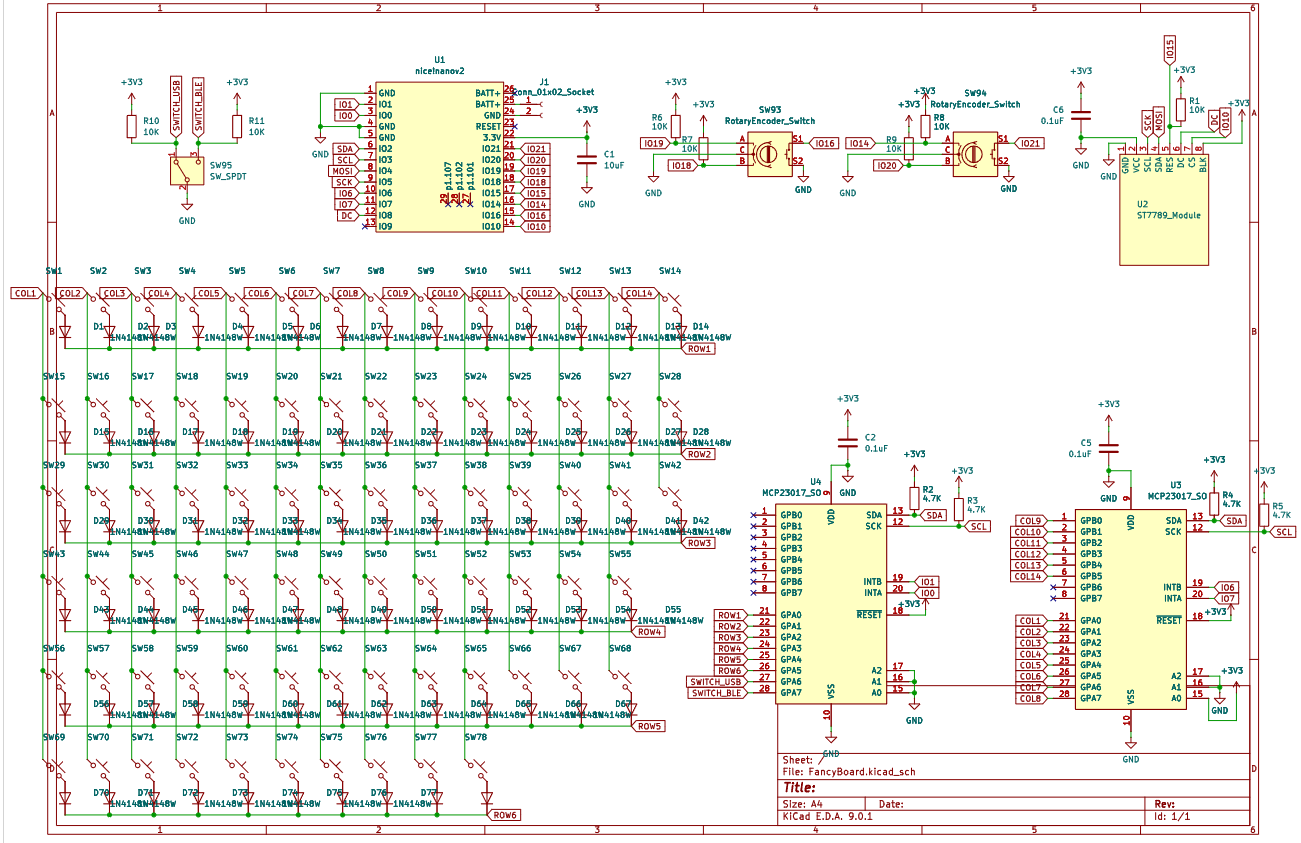

done with schematic, pull ups and capacitors

need to make footprints and assignments

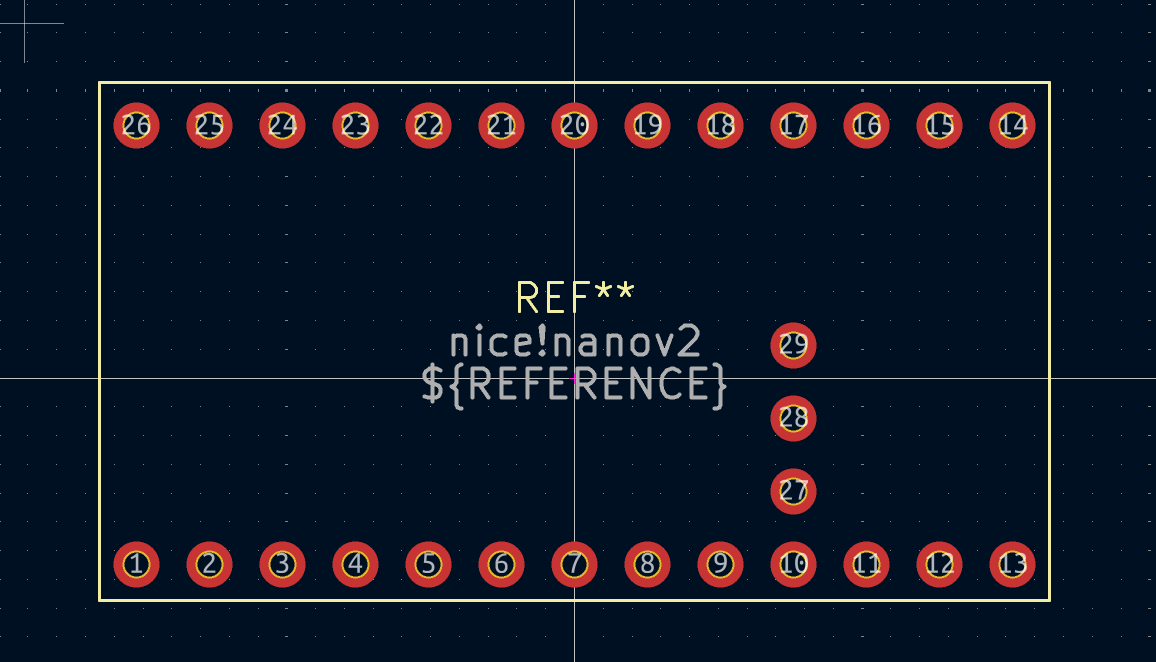

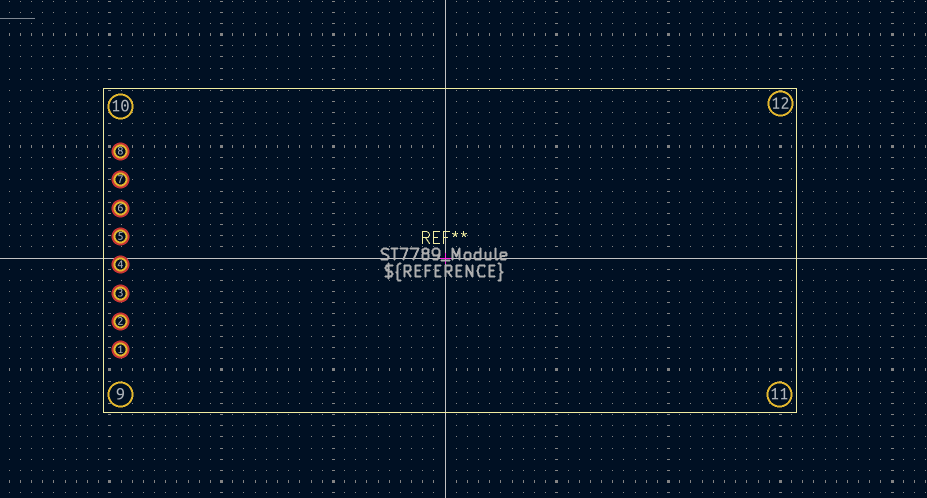

done with both footprints

+3 hours

keycaps: https://www.aliexpress.com/item/1005004840360158.html

deciding on Kailih Choc V2 Low Profile Switches

stabalizers: https://www.aliexpress.com/item/1005001781468636.html

spdt switch: SS12D00

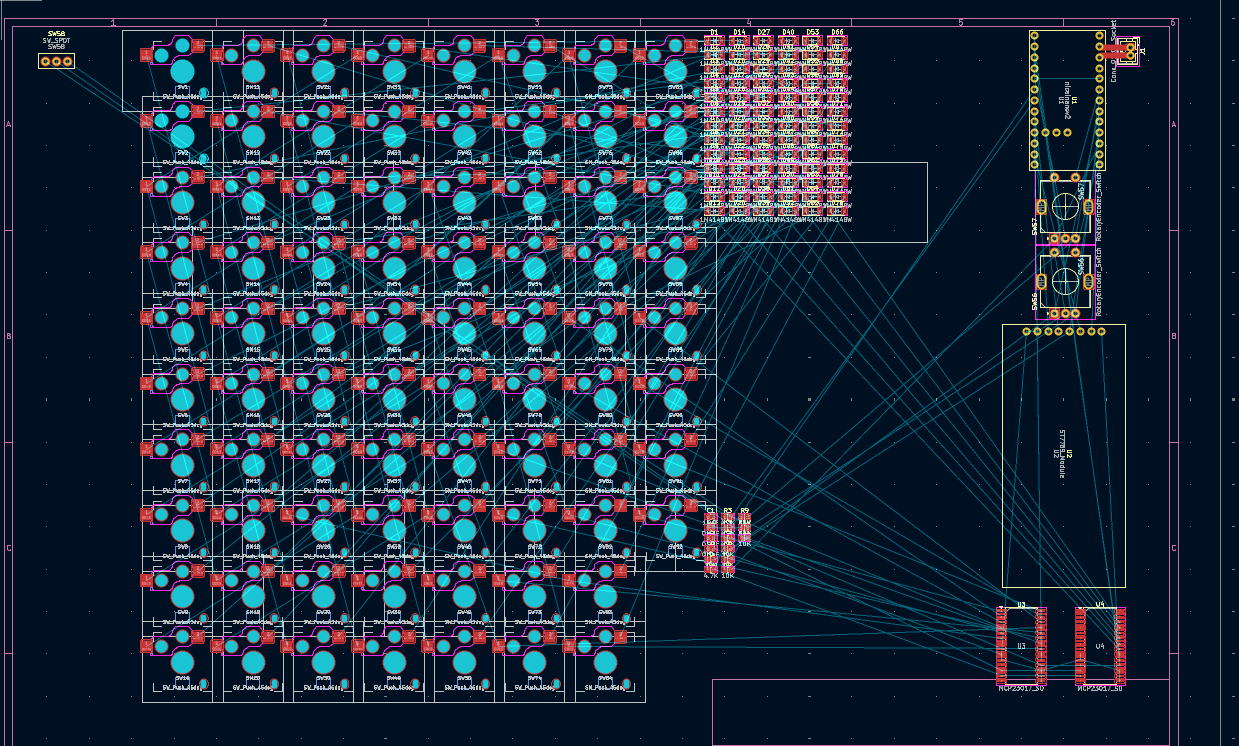

fixed a few symbol and footprint issues, starting pcb

switching to choc v1 because its easier https://shop.beekeeb.com/product/kailh-choc-v1-hotswap-socket/

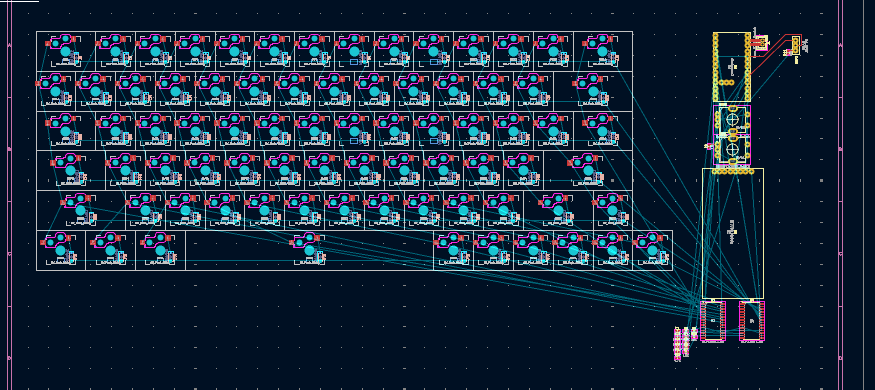

fixed the layout, need to route now

finshed layout fully, routing time

+5 hours

july 30th

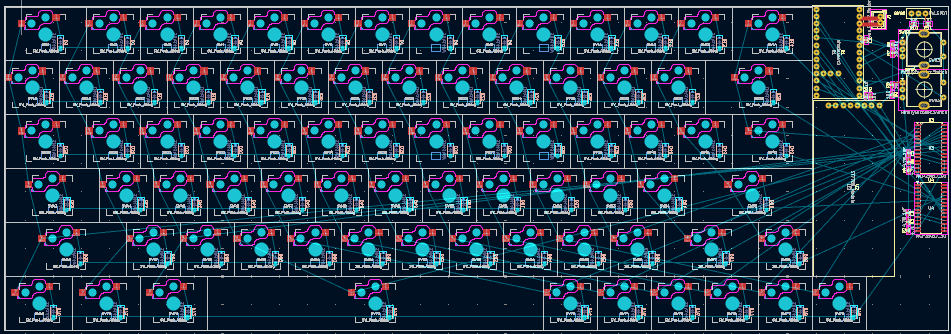

almost finished routing, need to route rows/columns and other components

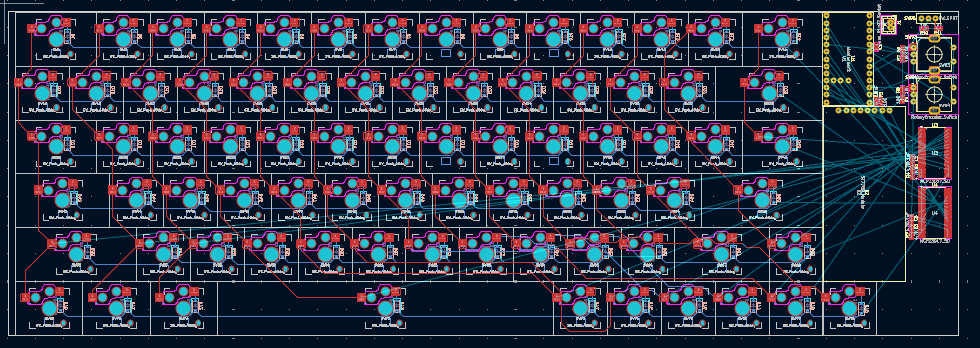

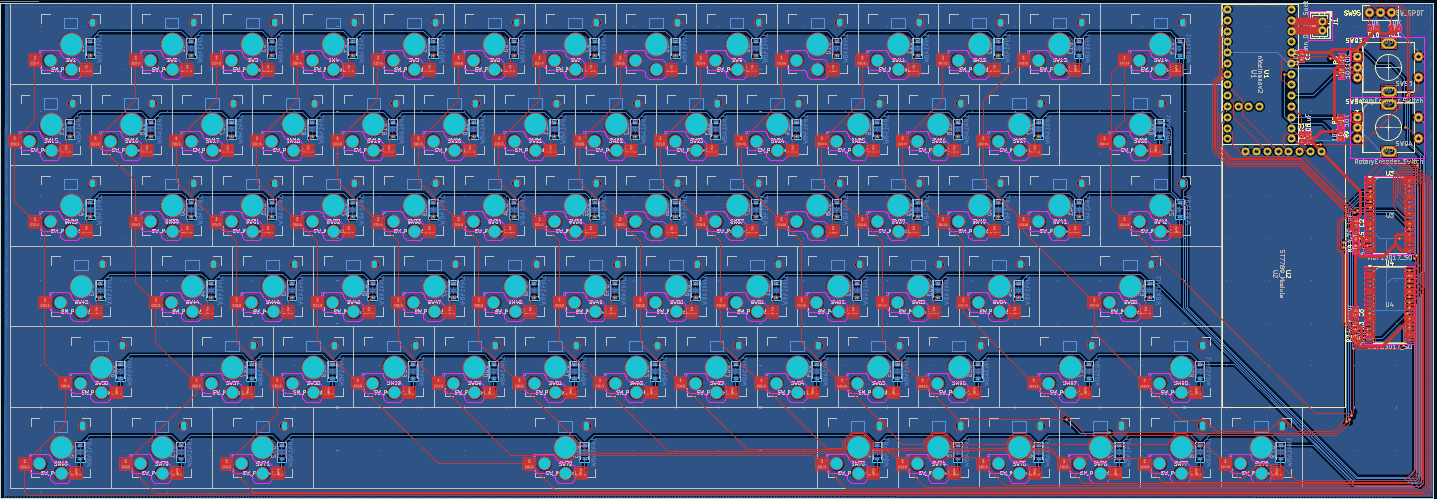

finished routing rows and columns

apparently the footprint library had the sockets flipped, so i had to edit the footprint library and then reroute all the keys unfortunately

cooked but oh well

+4 hours

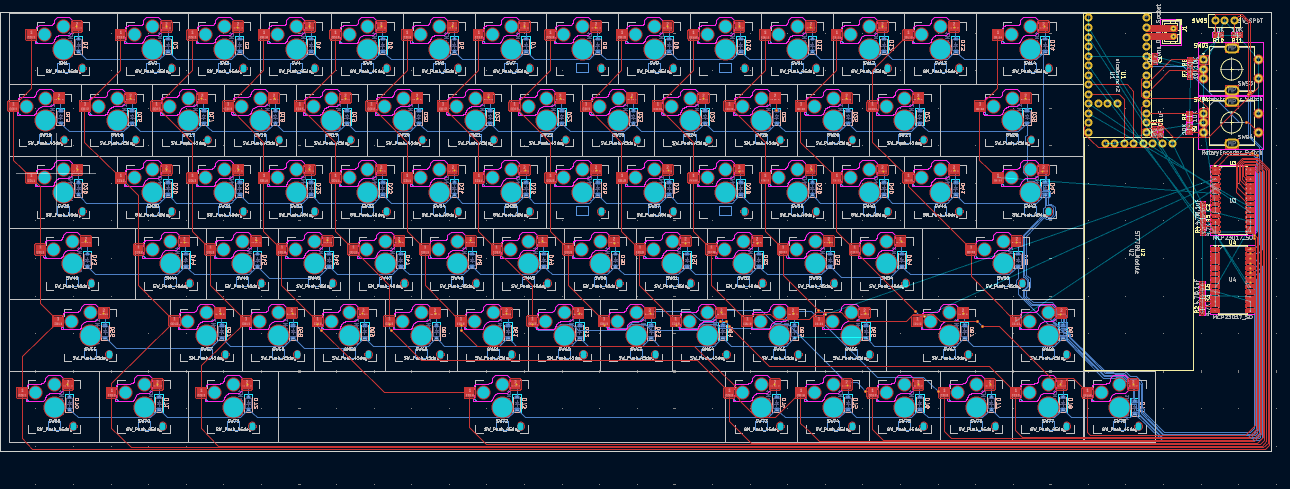

completely finished pcb, working on models

+2 hours

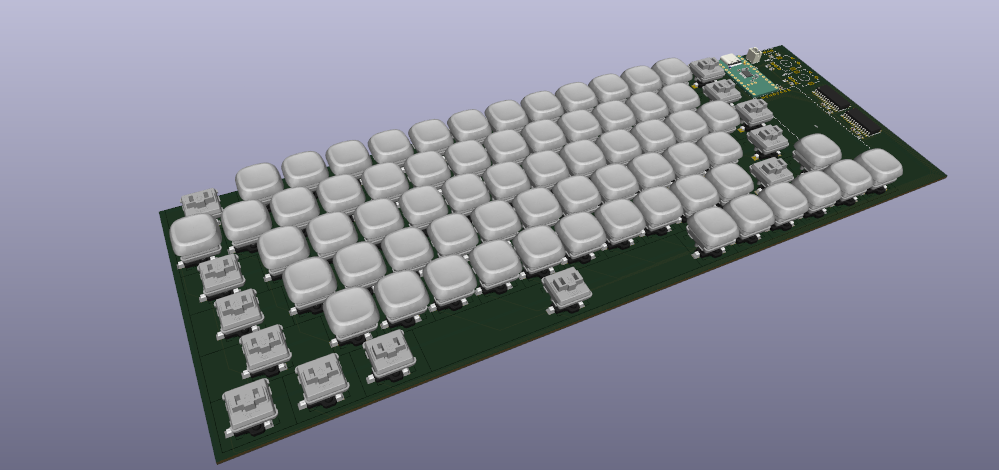

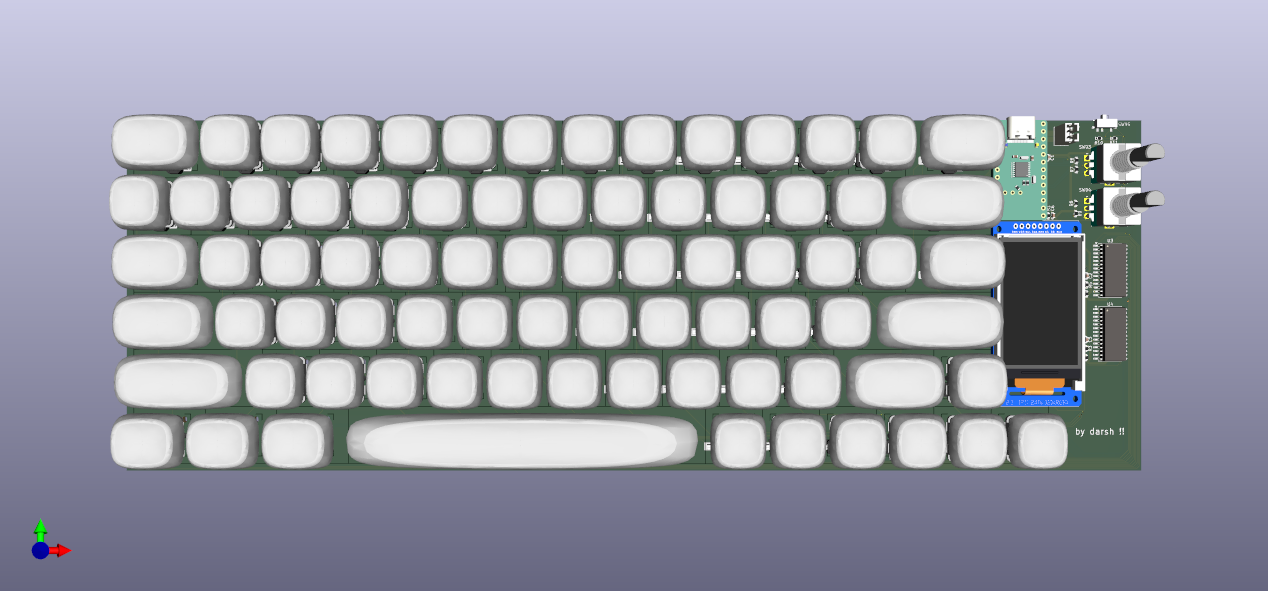

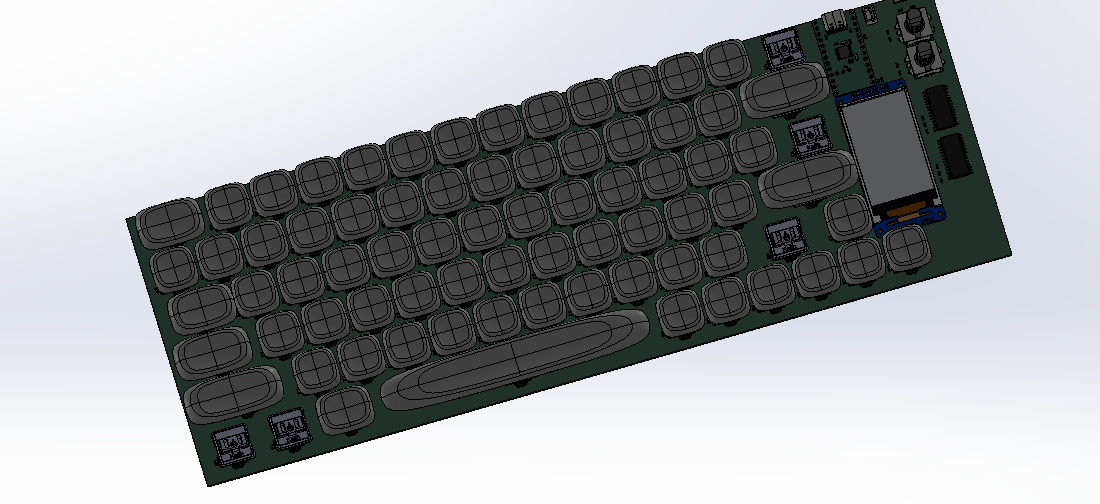

changed switch, cleaned up some wiring, added 3d models for everything, changed some footprints

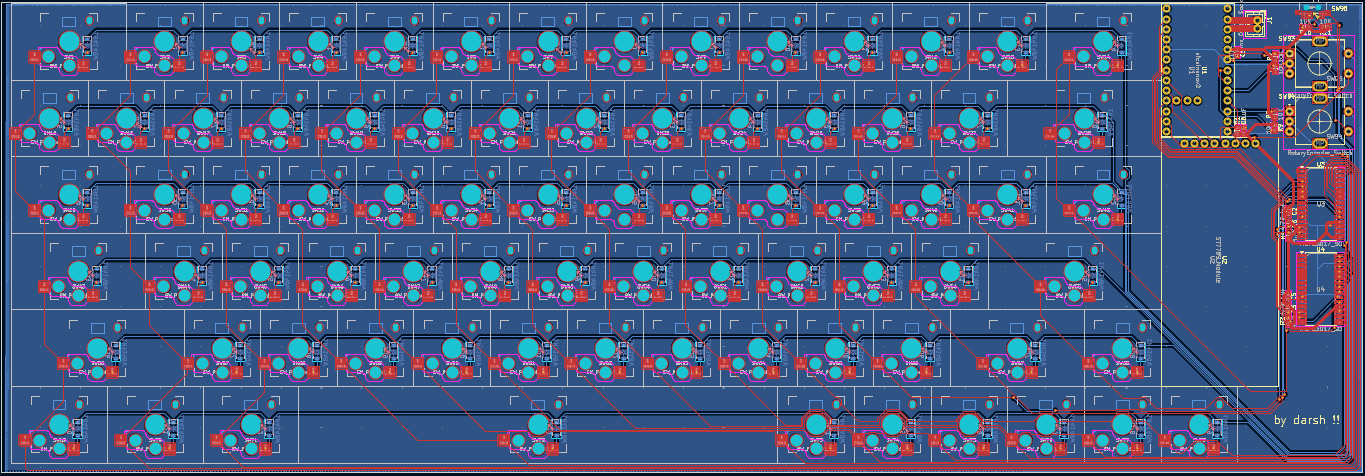

pcb fully done !!

+2 hours

july 31st

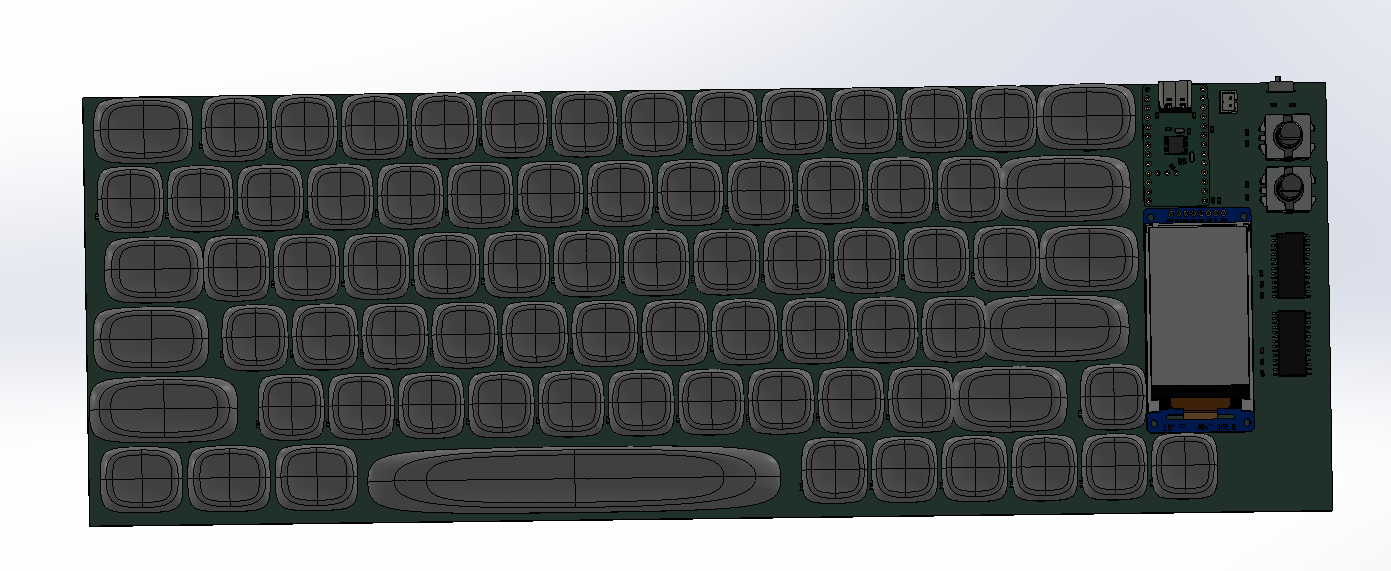

manually adding keys cause kicad doesnt export stretched components properly (its sooooo slow)

also made the bom

+3 hours

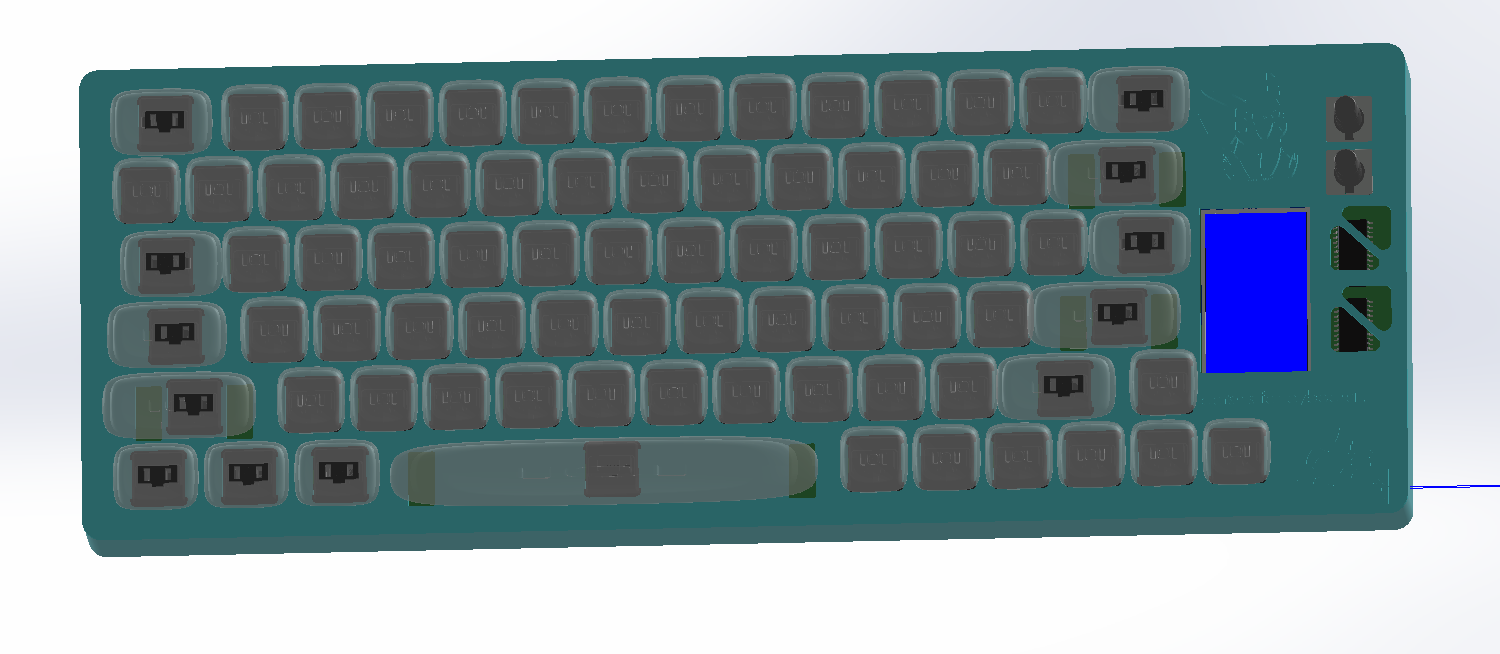

done with pcb cad

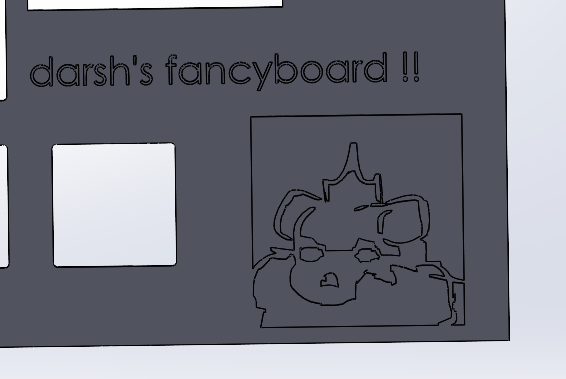

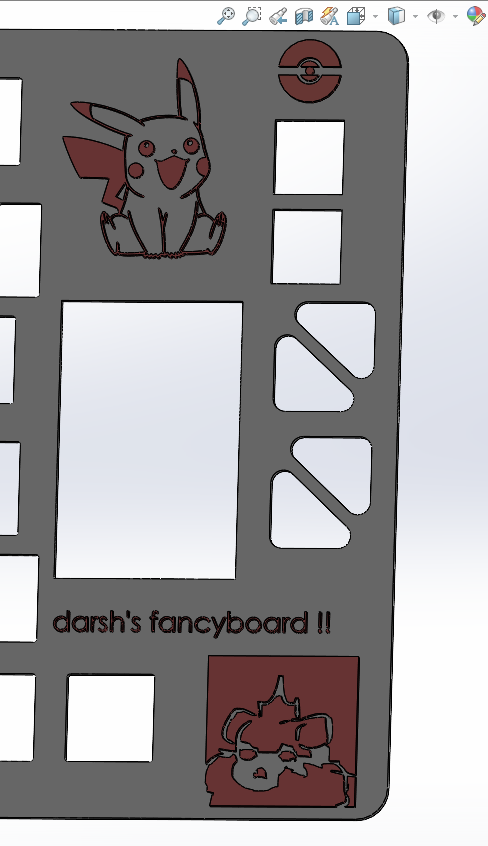

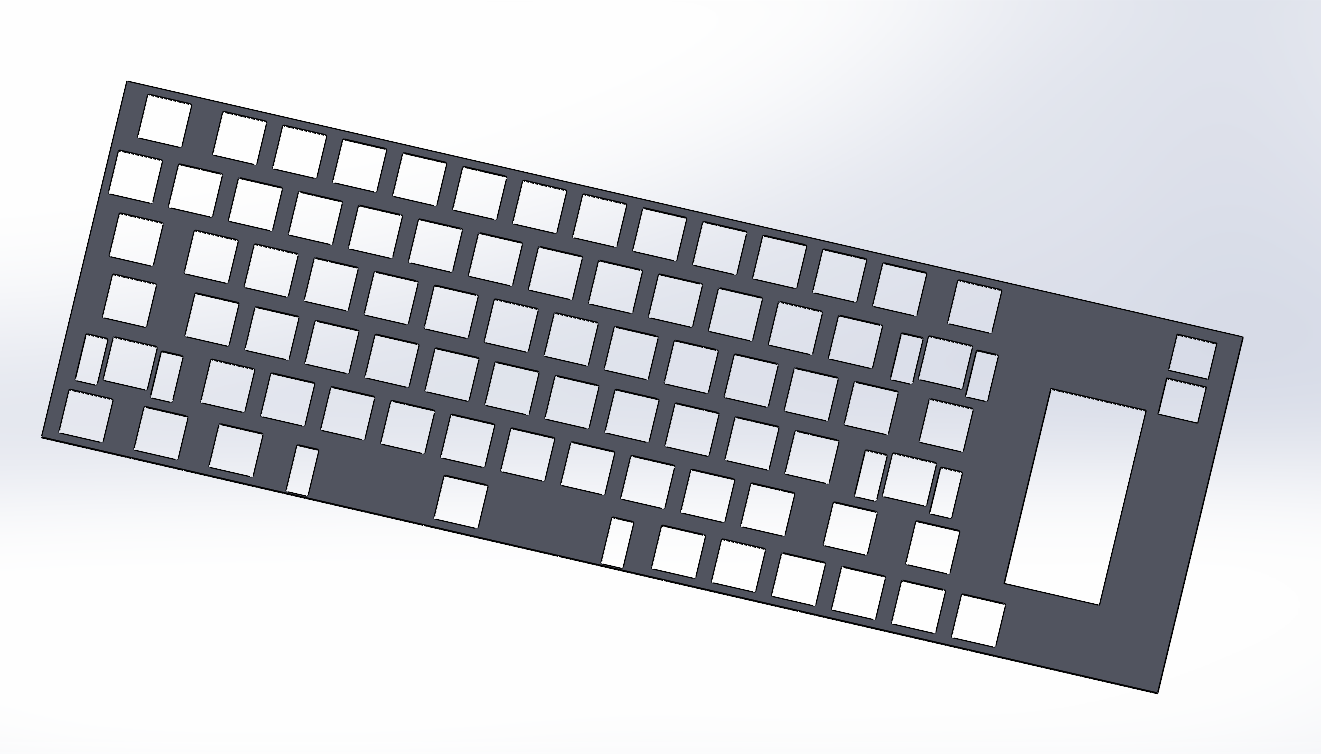

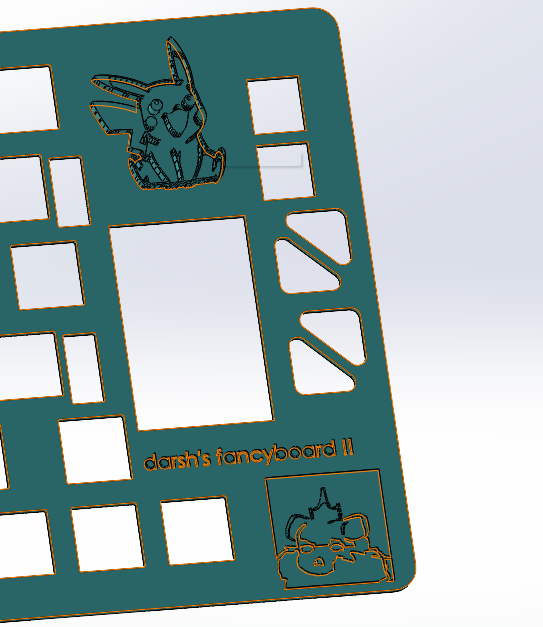

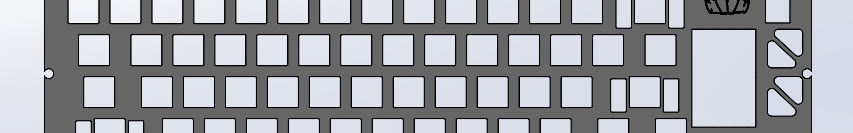

top plate cad done

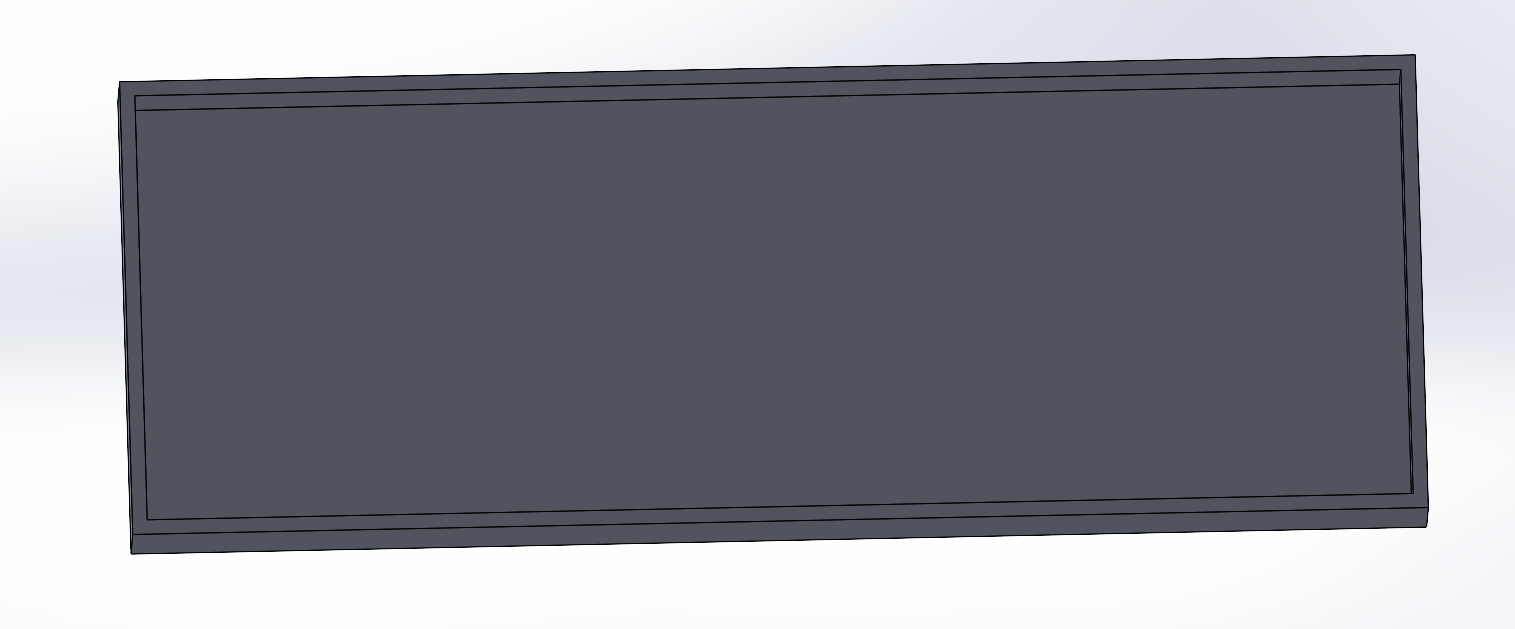

bottom plate mostly done, need to add usb cutout still

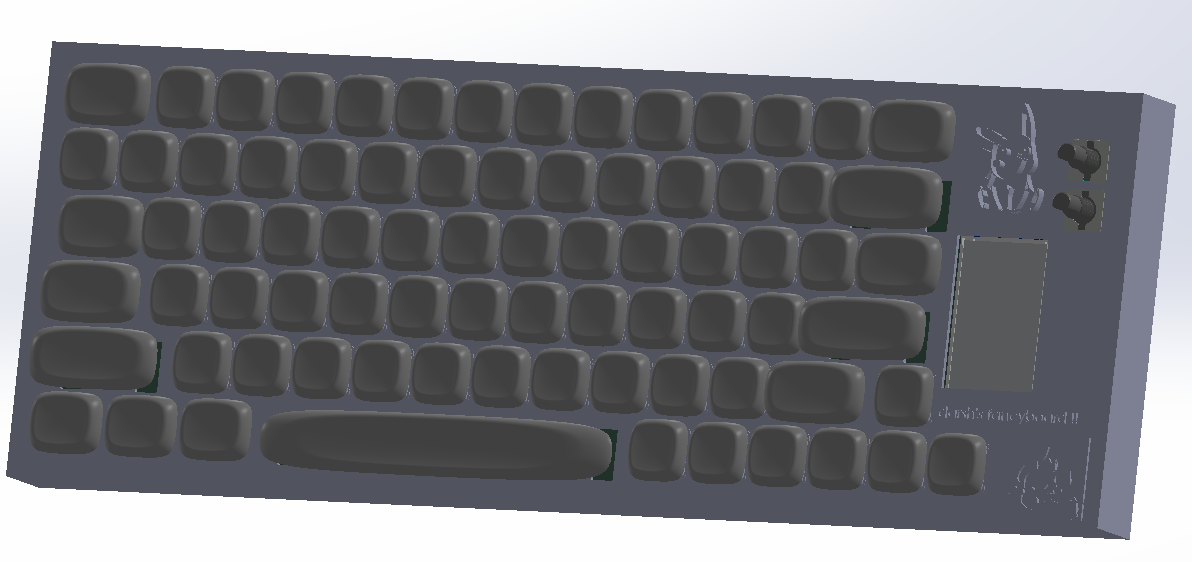

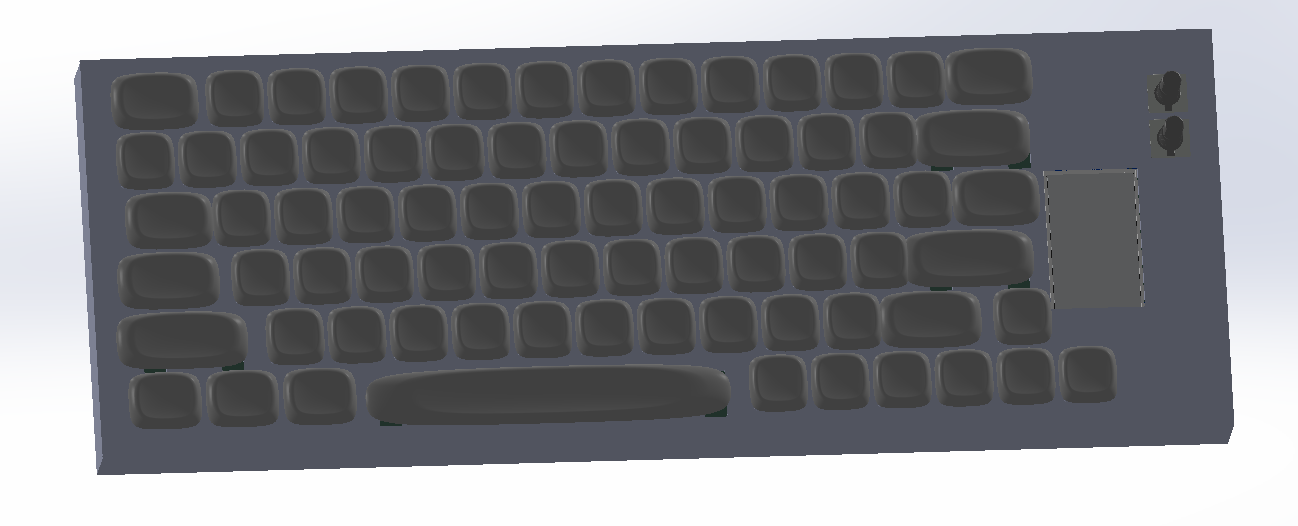

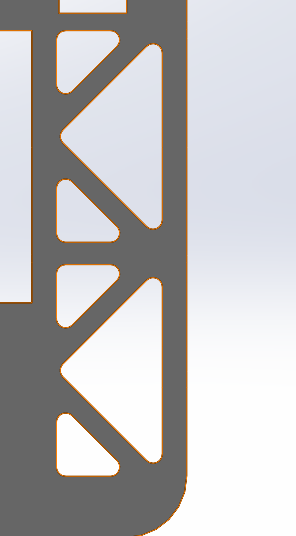

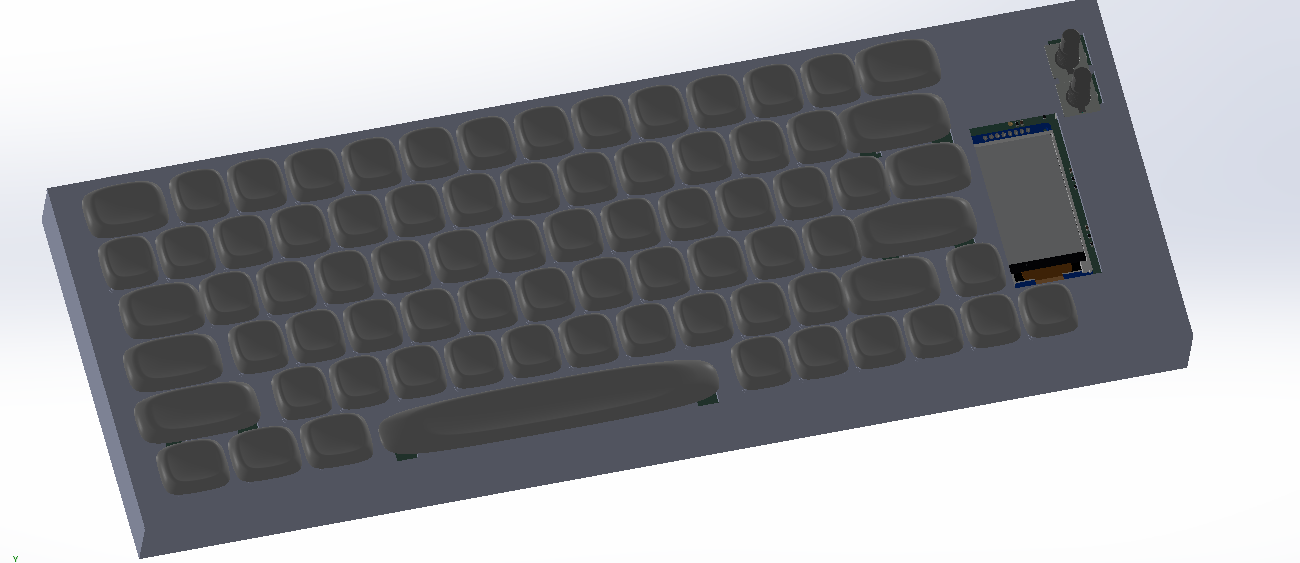

working on case

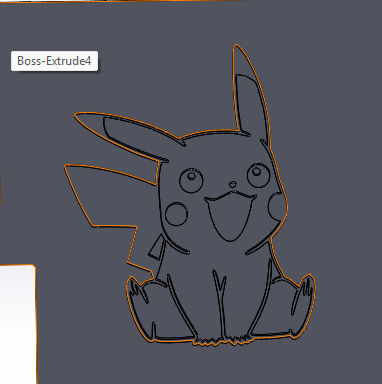

cad mostly done need to add some design later

+4 hours

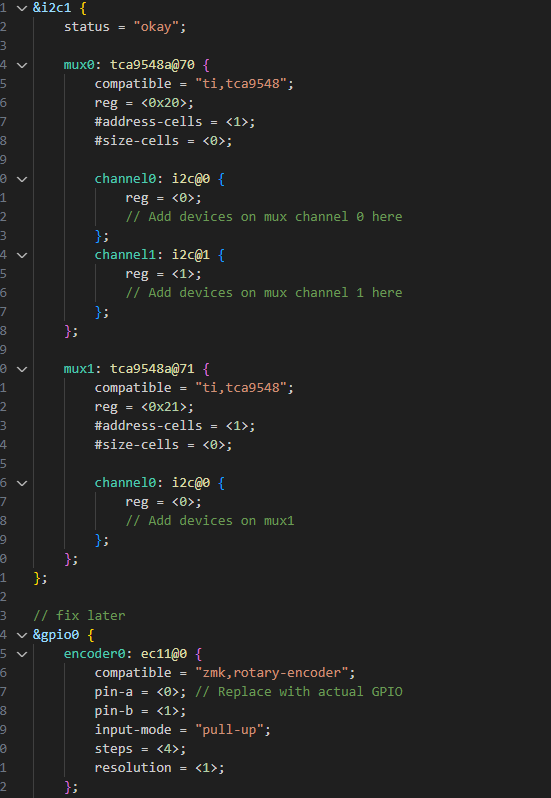

firmware:

based it on the bt75_v1 firmware, as its very similar

using https://nickcoutsos.github.io/keymap-editor/, i edited a zmk keymap for the keyboard

after some chatgpt consulting and perusing the docs, zmk is actually really complicated and lowkey a little gibberish, so im gonna switch over to bluemicron firmware, which also supports the nicenanov2 and has bluetooth, but uses arduino c instead of the mess zmk has

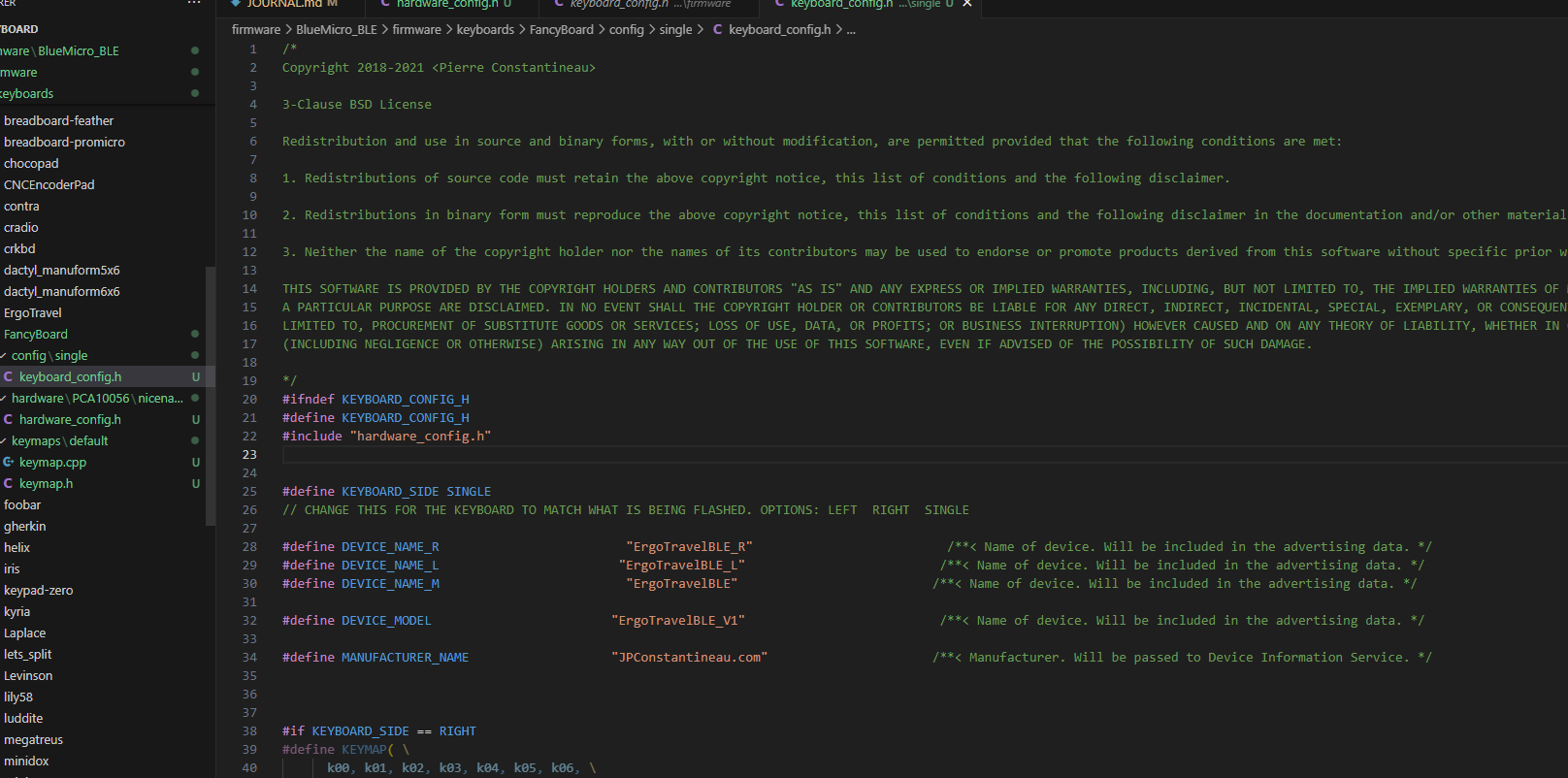

learning bluemicro: copied over repo and made my project, starting on config
