Leptosis
Time spent: 35h
25/06/2005
Made the basic pg1316 layout!
- 1.5h
Designed the nrf module!
- 1.5h
Starting to layout the nrf,,,
- 1h
26/06/2005
The nrf chip is done laying out!
- 2h
And also layed out the BMS :3
- 2h
Routed all of my switch routes to low speed pins.
- 1.5h
27/06/2005
Added the on/off switches and did misc changes!
- 1.5h
28/06/2005
Keeb got changed to 2 layers to reduce cost.
- 2h
29/06/2025
Made the case, improved pcb and wrote out readme :D
- 2h
NOTE: https://github.com/adafruit/Adafruit_nRF52_Bootloader
This is the end of v1, I am not happy with this
- 1h
02,03,04/07/2025
Finished with the keys
- 4.5h :O
04/07/2025
Now the main layout is done :D
- 3.5h
05-06/07/2025
And I've also finished the right side!!!
- 3h
The case is also finished!
- 1h
Aaand I finally shipped everything :yay:
- 1h

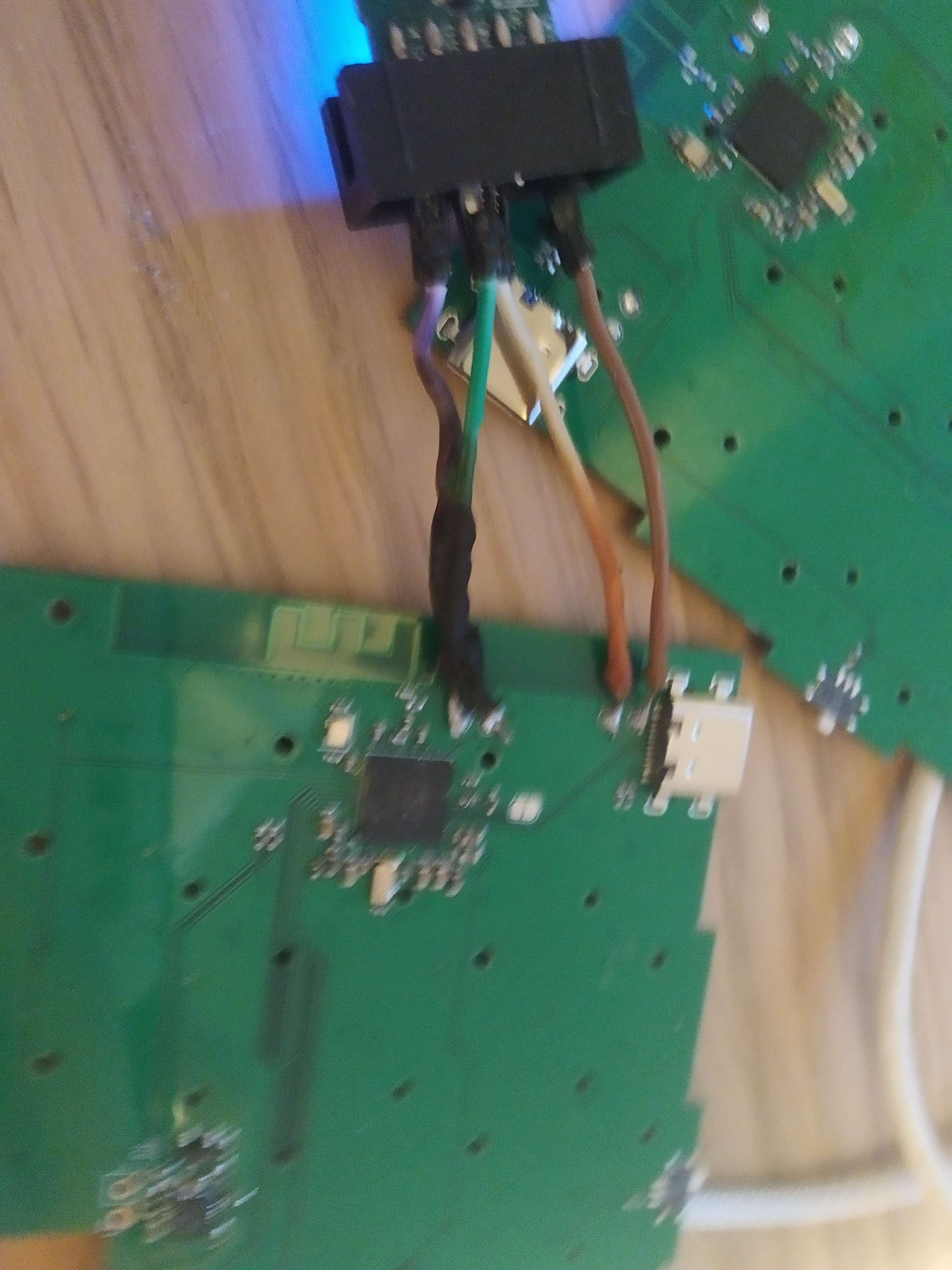

Tried PCBA myself, failed misserably. But made custon bootloader firmware! (https://github.com/cheyao/Adafruit_nRF52_Bootloader/)
- 6h

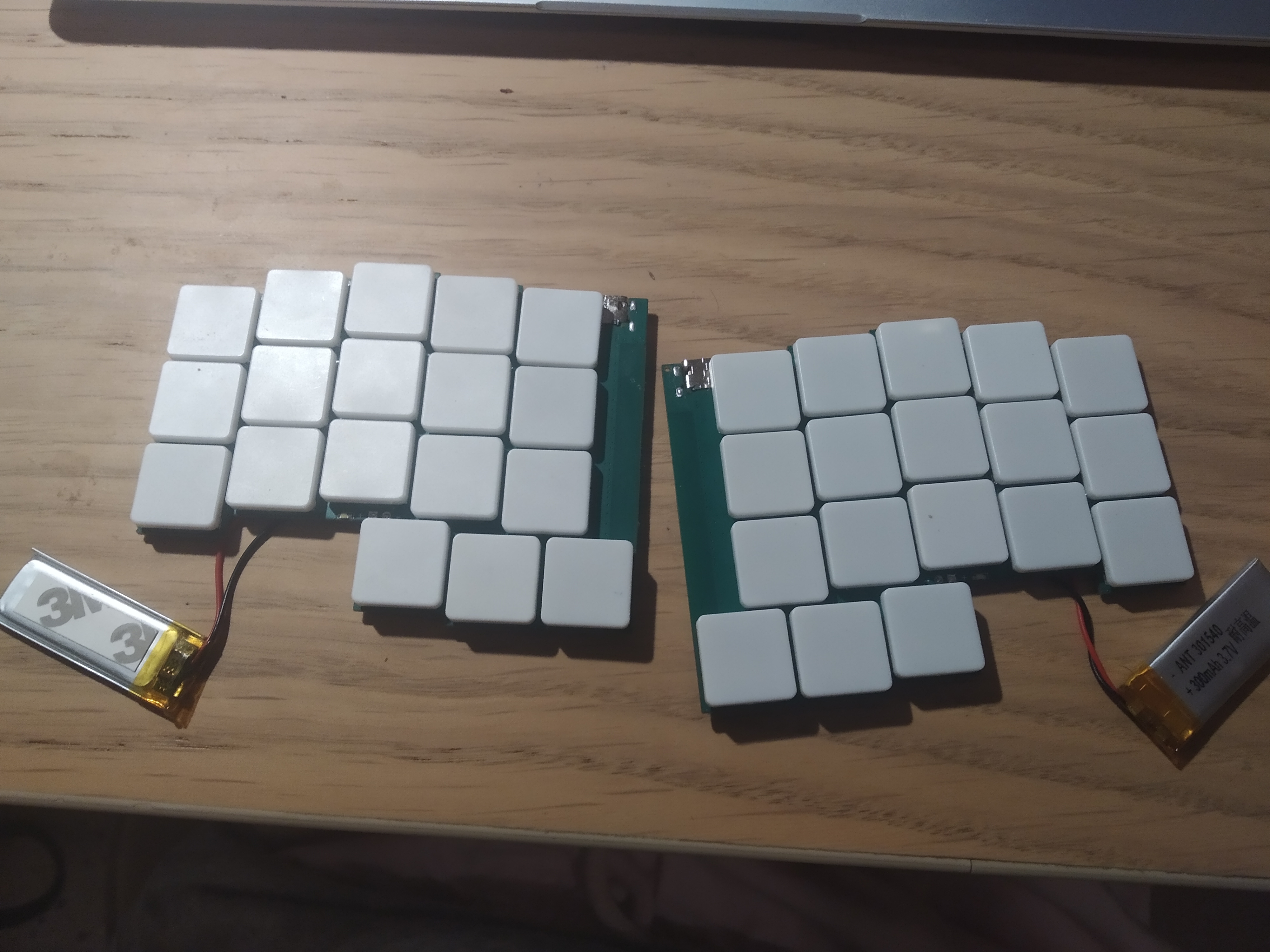

Finally got PCBAed PCBs, and soldered on the switches and misc stuff myself
- 4h
Made the custom zmk firmware https://github.com/cheyao/zmk-config/, the zmk docs are a bit long lmao

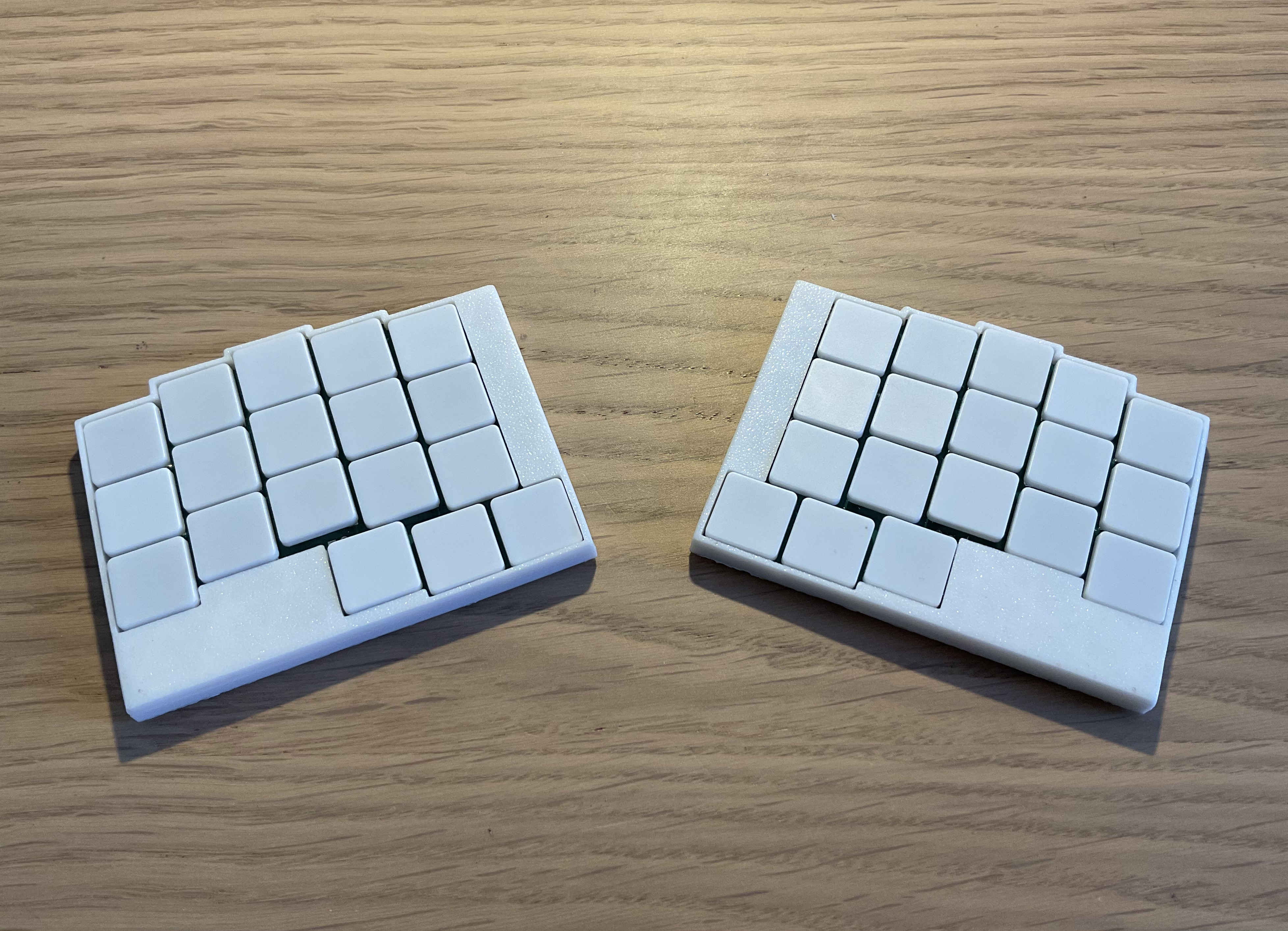

Printed the case and voila!
- 5h
