Allan keyboard

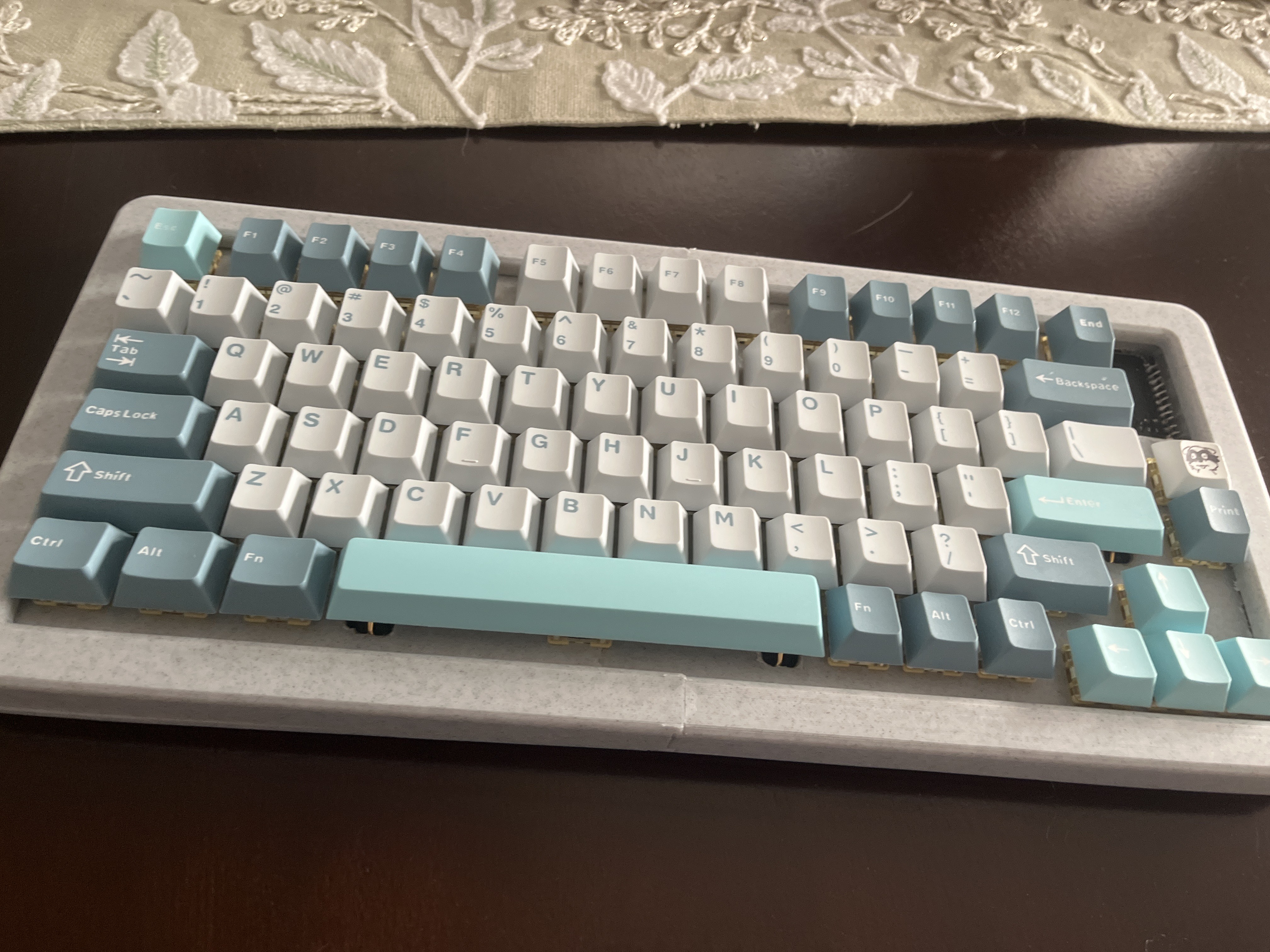

Allan keyboard is a keyboard made for Allan
Total time spent:1070 mins| 18 hours
June 9: research and getting started
So this is my first time making a keyboard, so I decided to do some thorough research to make sure that I fully understood everything, and made it how I wanted.

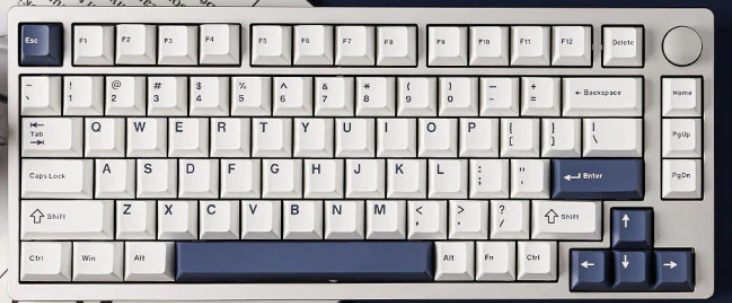

I'm thinking of a 75% keyboard, specificaly something similar to Epomakers, minus the rotary encoder.

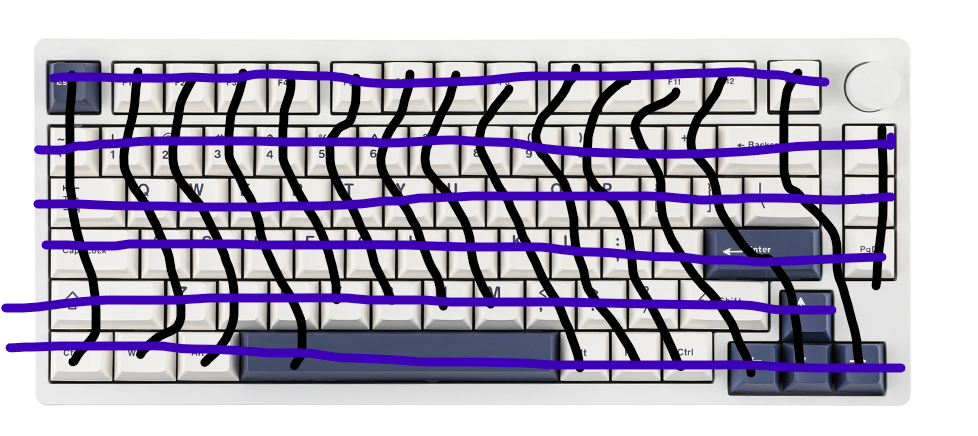

I made an initial sketch for the matrix I also decided on the Nice Nano as the mcu
Total time spent: 30 min
June 9: making the schematics
Not much to say, made the matrix and connected everything.
Total time spent:90 mins
June 10: starting the pcb

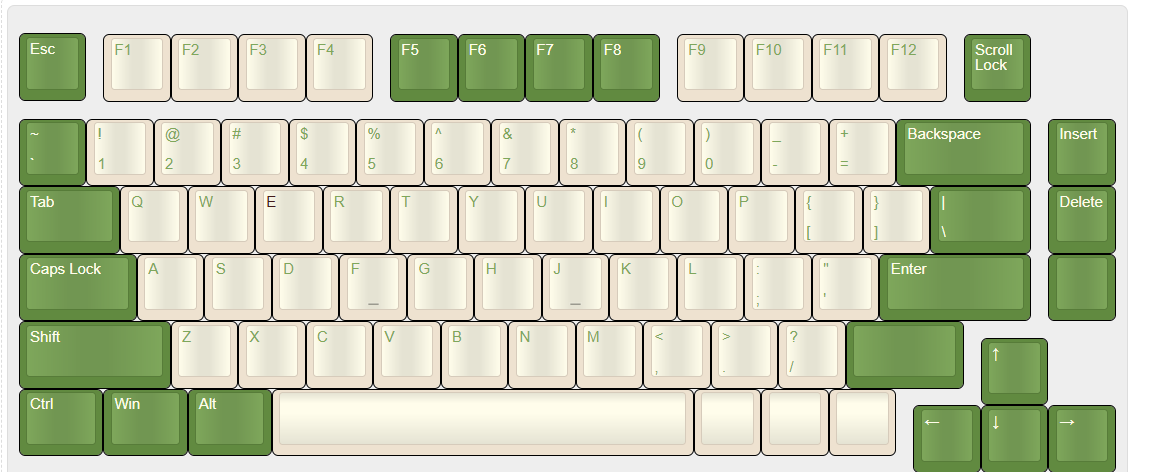

I started off by creating my design in Keyboard Layout Editor, then spent time trying to import it into KiCad.
Took a really long time, I kept having problems with using the keboard placer plugin in Kicad,
had to redo footprints a bunch, set annotations and rearrange my schematic.
Only have to move all diodes and route traces
Update: closed the window and clicked discard change because I was sure i only made one small thing. Will be restarting but oh well.
Total time spent: 180 mins

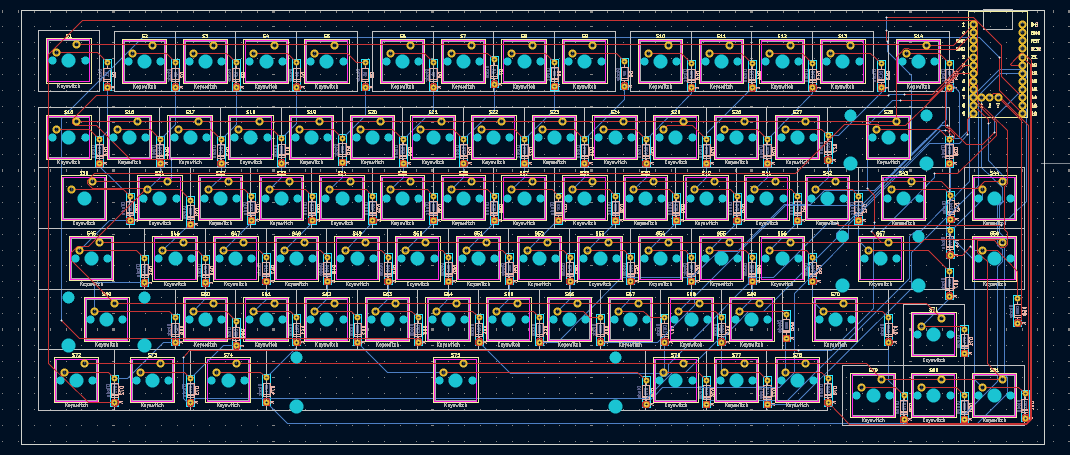

june 11: Finishing the pcb

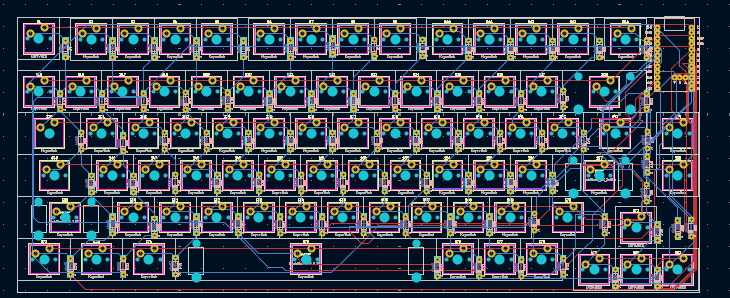

Finished positioning everything and routing all the traces. (made sure to save this time)

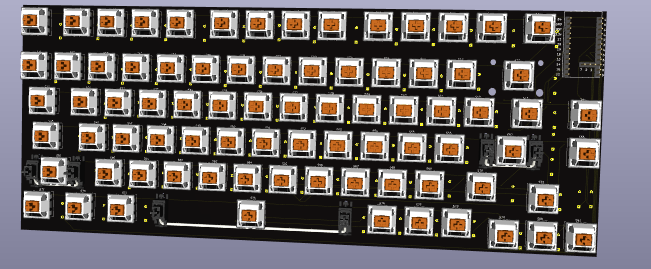

Had a problem with the switches for 3d viewing, had to manually reassign each individual switch after downloading a library online Total time spent: 240 mins

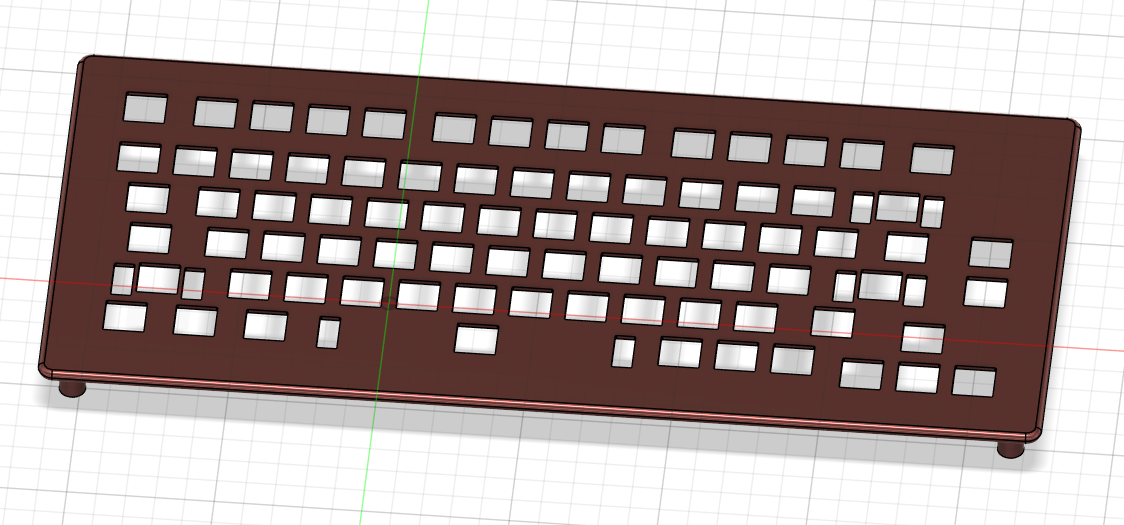

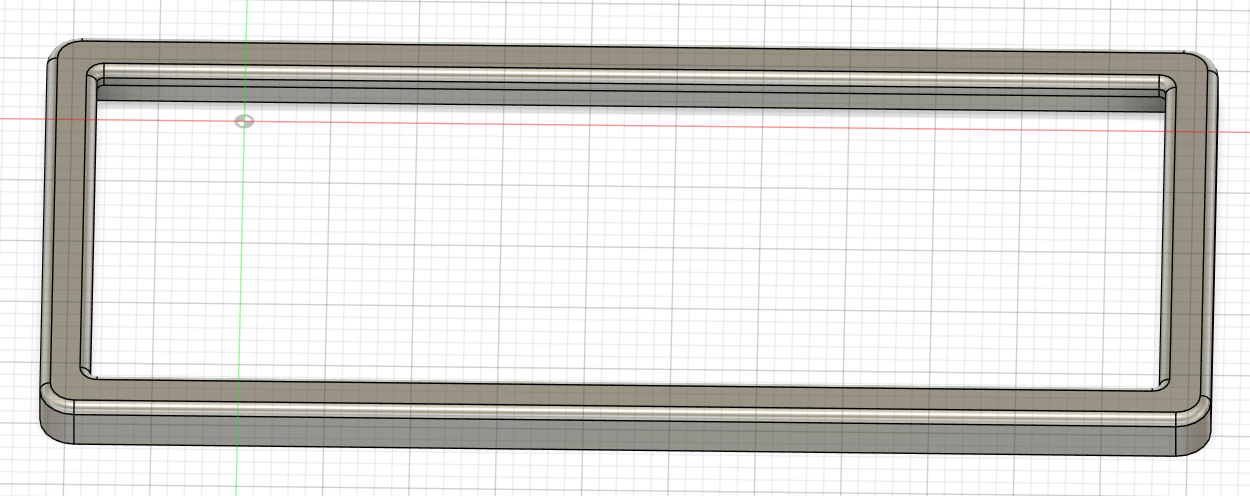

June 23: making the case

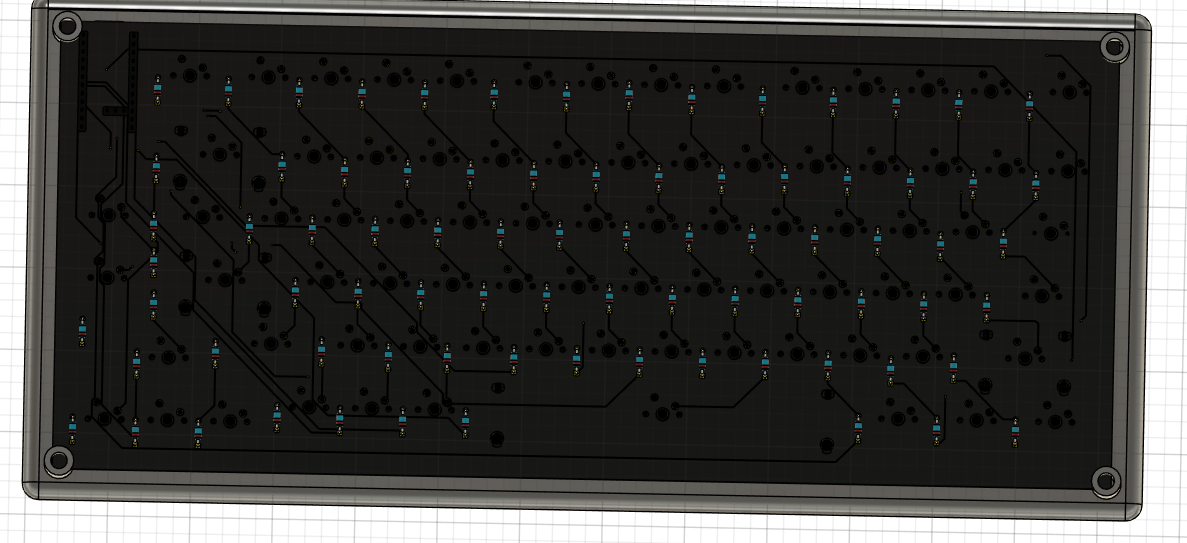

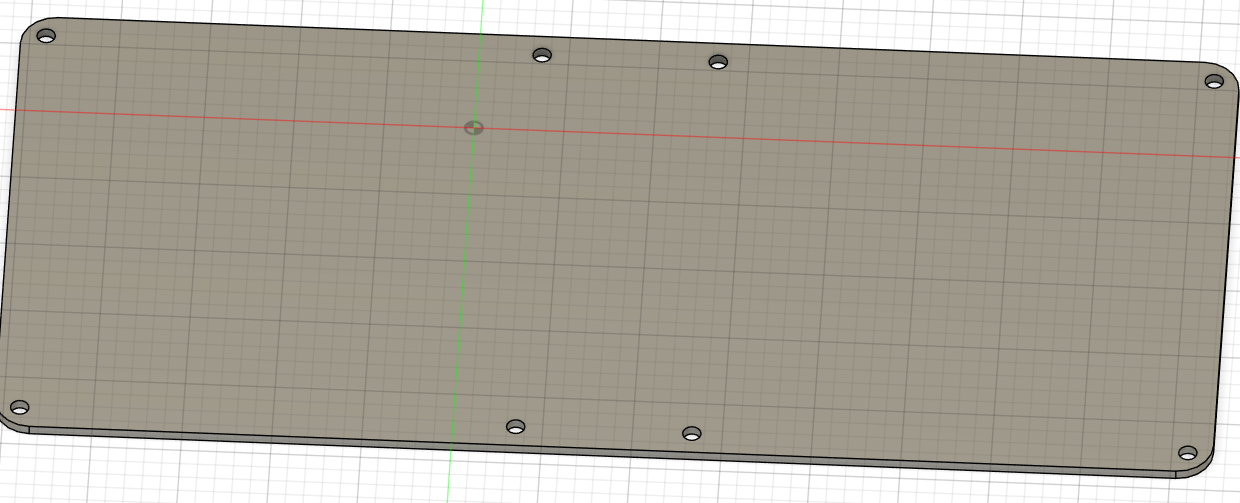

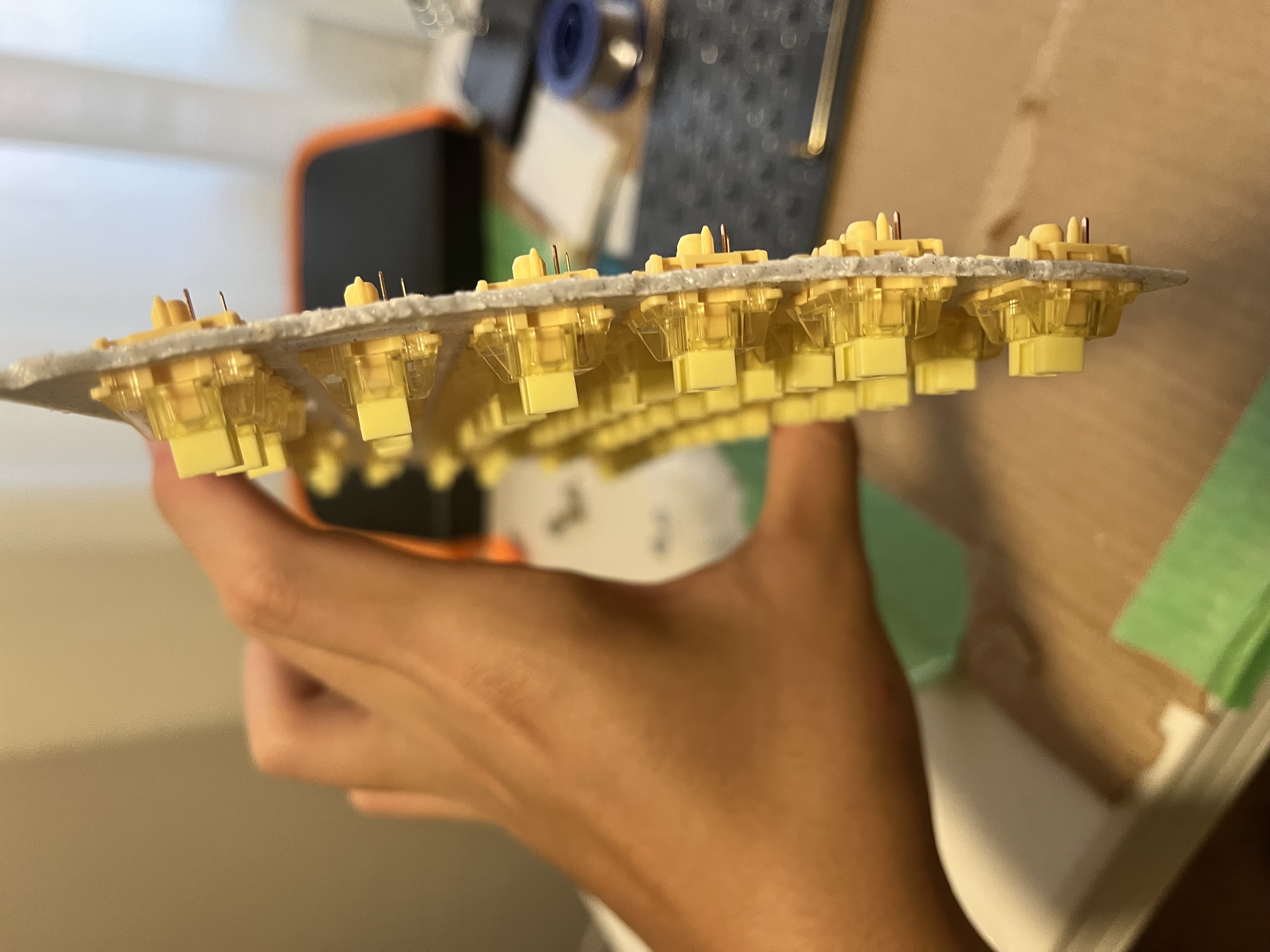

It's been a while, Just finished up school so I can focus on doing this now For my case, i wanted to have honeycomb walls, and make it snap together to be screwless. So my pcb's dimmensions are apparently bigger than the plate I had in fusion, so it interferes with my screws
I will have to completely restart, however I hope it's easier seeing as I only need to change all the dimmensions update: It was not a difficult fix, however looking at it it just looks really weird to me. I left a lot of space in my pcb design so I am going to get rid of it, and also I'll have to rewire all my traces.
Total time spent: 200 mins
June 23: fixed pcb

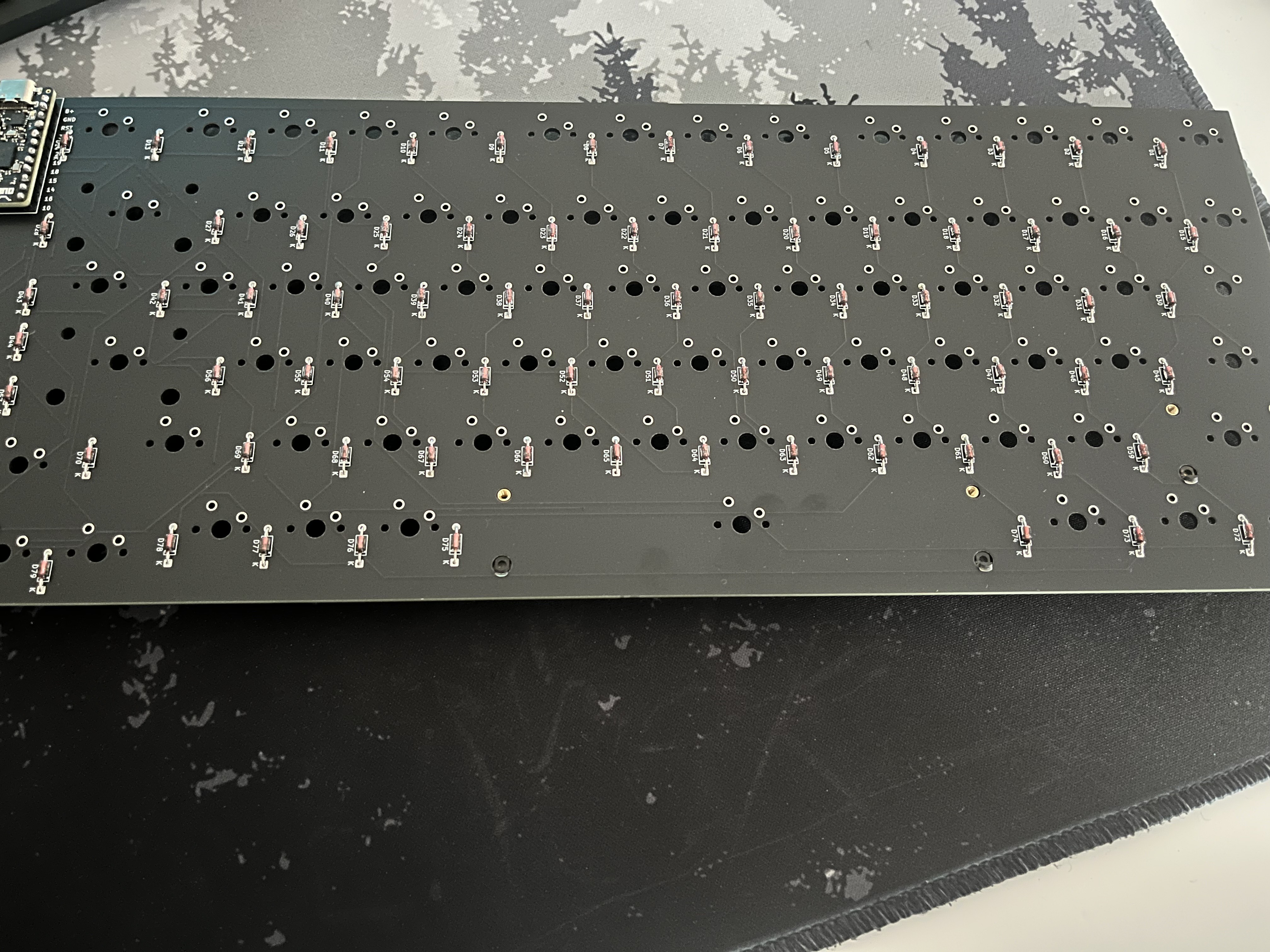

I changed pcb to be on the bottom, and rerouted all the traces.
June 24 update: I <3 github, accidently overwrote and cleared all my kicad project files (idk how tbh) almost had me stressing for a minute there
Total time spent: 60 mins

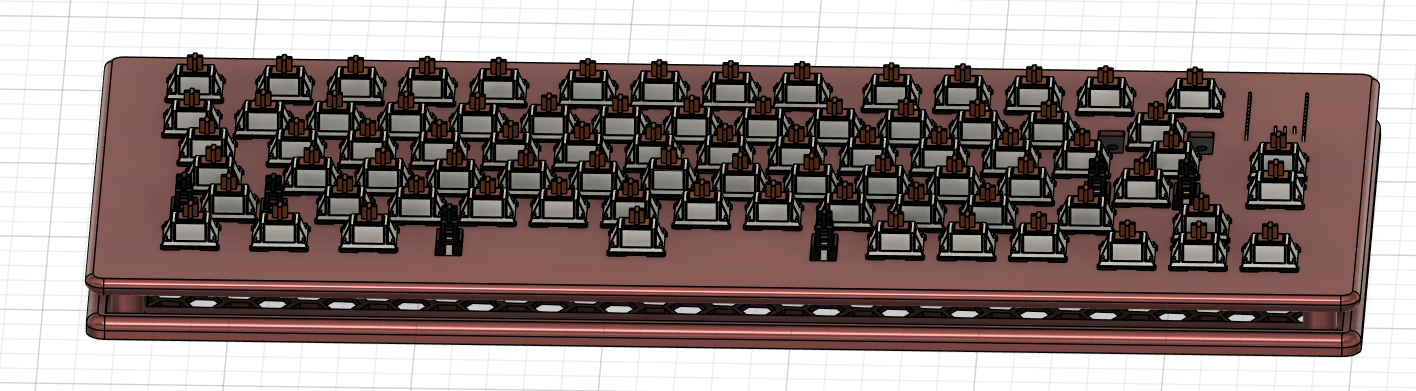

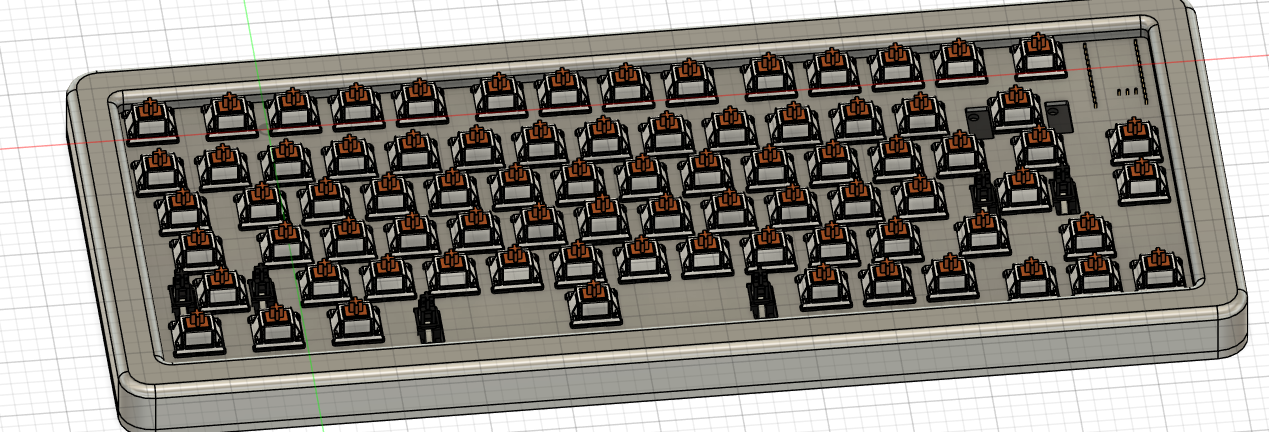

June 24: finishing the case:

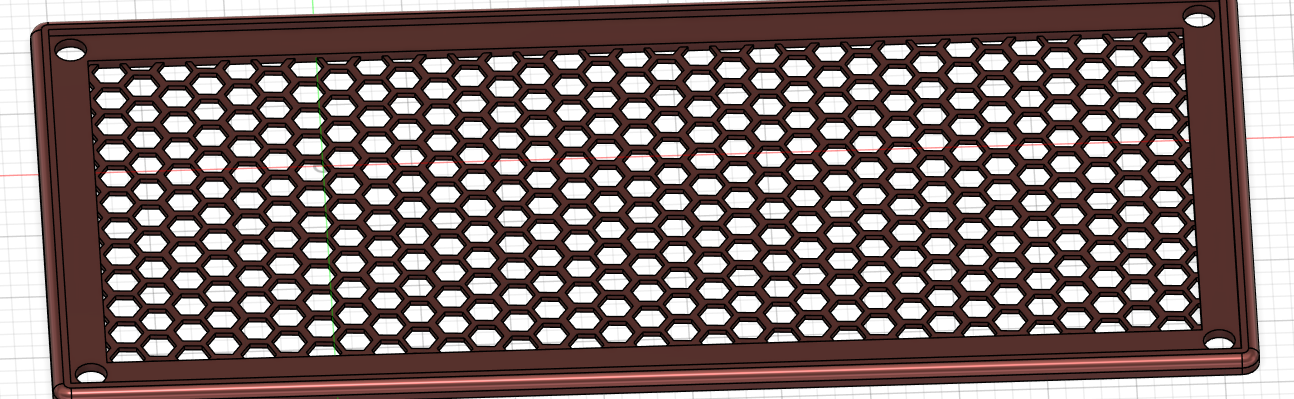

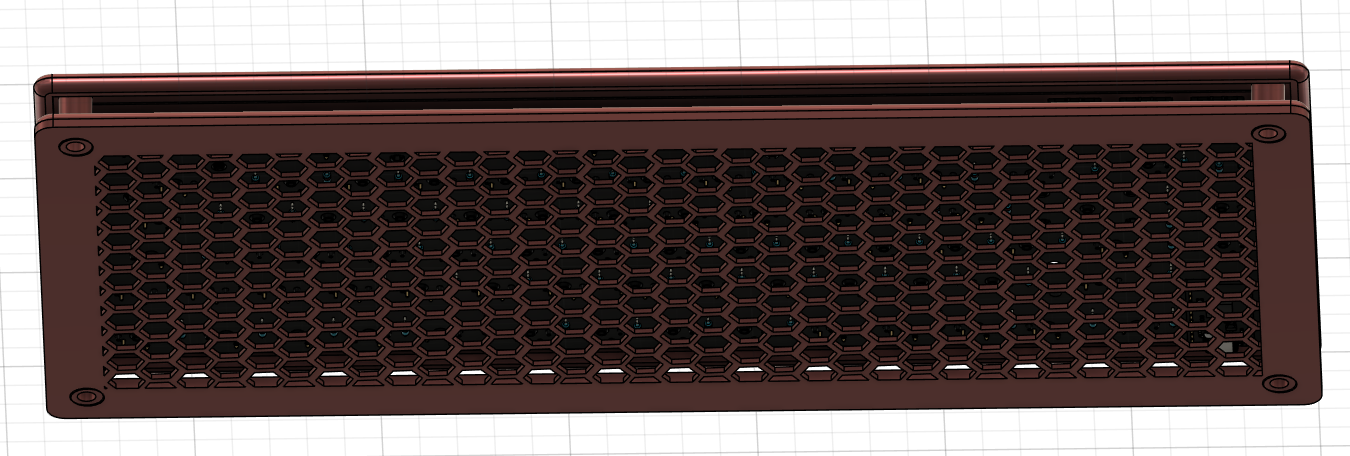

I created a honeycomb pattern for the case and finished polishing everything up!
Total time spent: 120mins
June 24: big problem time

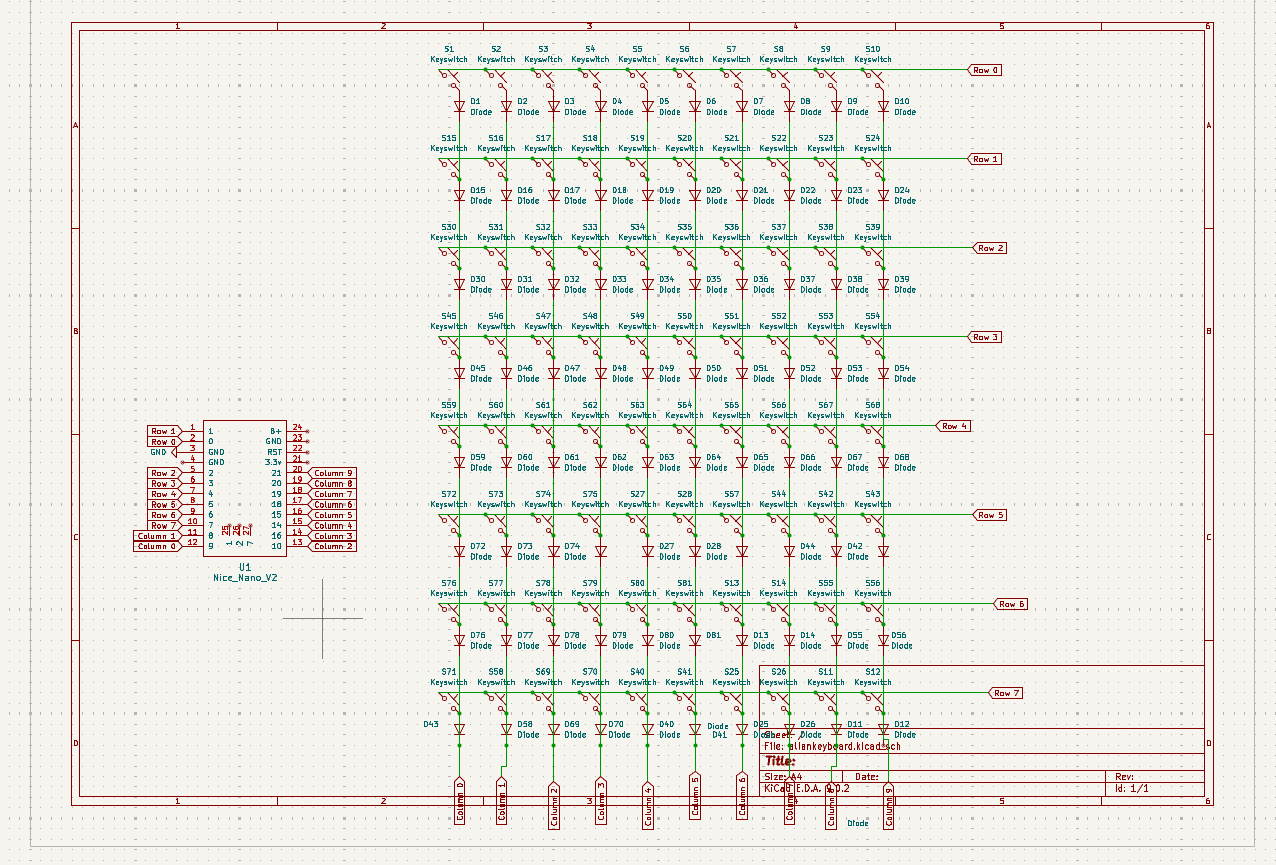

So I'm trying to write my kmk, when I look at the schematic of my nicenano and notice that the 3 middle pins aren't unique gpio pins. I made my matrix based off my actual keyboard layout rather than optimising it so I'm left with 21 gpio pins vs 18 required, which would fit on the mcu. I can A: keep nice nano, recreate schematic, reformat and fully recreate pcb or B: change mcu from nice!nano to something like a pico After debating for a while, I decided to stick with the nice nano since I wouldn't have to redo my case dimmensions and keep it more compact
Fixed and pcb
Total time spent: 90 mins
June 24: making the firmware
Not too much to say, It was a bit complicated trying to properly map the matrix, as I had to rearrange lots of things and I didn't completely restart (last entry) in theory everything should work fine however i will have to wait until I build my keyboard to see.
Total time spent: 60mins
